• Air conditioning, single-zone
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Audio system feature, 2-speaker system (Requires Regular Cab model.)
• Audio system, Chevrolet Infotainment 3 system 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, wired Apple CarPlay and Android Auto capable.
• Bluetooth® for phone, connectivity to vehicle infotainment system
• Door locks, manual (Requires Regular Cab model.)
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Mirror, inside rearview, manual tilt
• Power outlet, front auxiliary, 12-volt
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

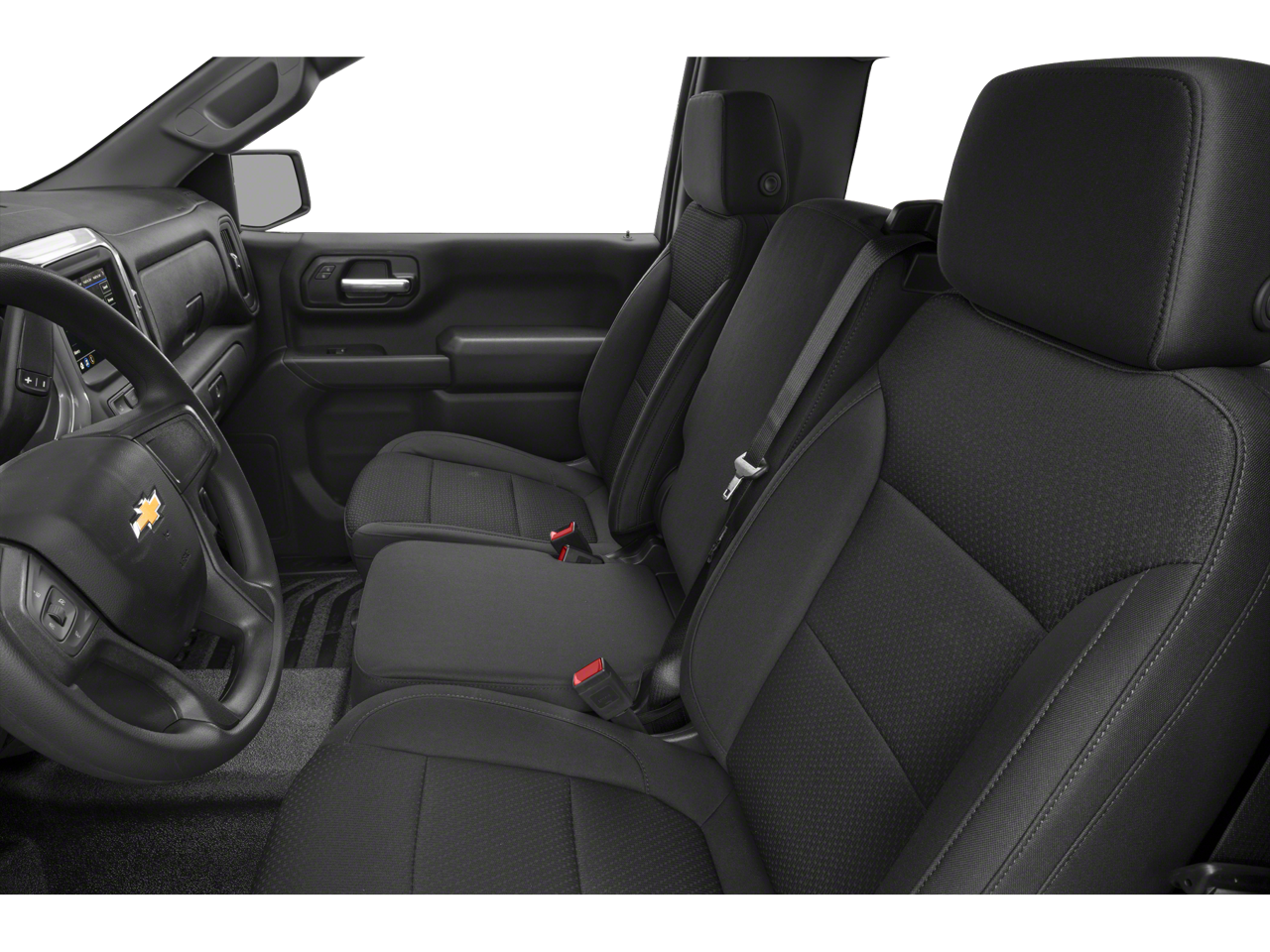

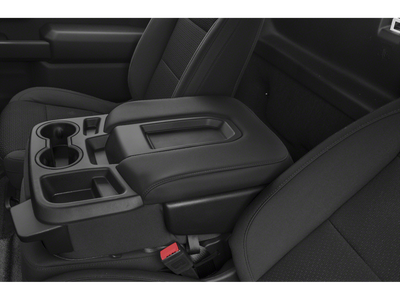

• Seats, front 40/20/40 split-bench with covered armrest storage
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Steering wheel, urethane
• USB ports, 2 (first row) located on instrument panel
• Windows, manual (Requires Regular Cab model.)

• Alternator, 170 amps
• Brake lining wear indicator
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Capless Fuel Fill
• Durabed, pickup bed
• Exhaust, single outlet
• Frame, fully-boxed, hydroformed front section
• Rear axle, 3.42 ratio
• Rear wheel drive
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion

• Airbags, dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• Rear Vision Camera (Deleted with (ZW9) pickup bed delete.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

DURABED, PICKUP BED

• (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRE, SPARE 255/70R17 ALL-SEASON, BLACKWALL

• (STD)

WHEELS, 17" X 8" (43.2 CM X 20.3 CM) ULTRA SILVER PAINTED STEEL

• (STD)

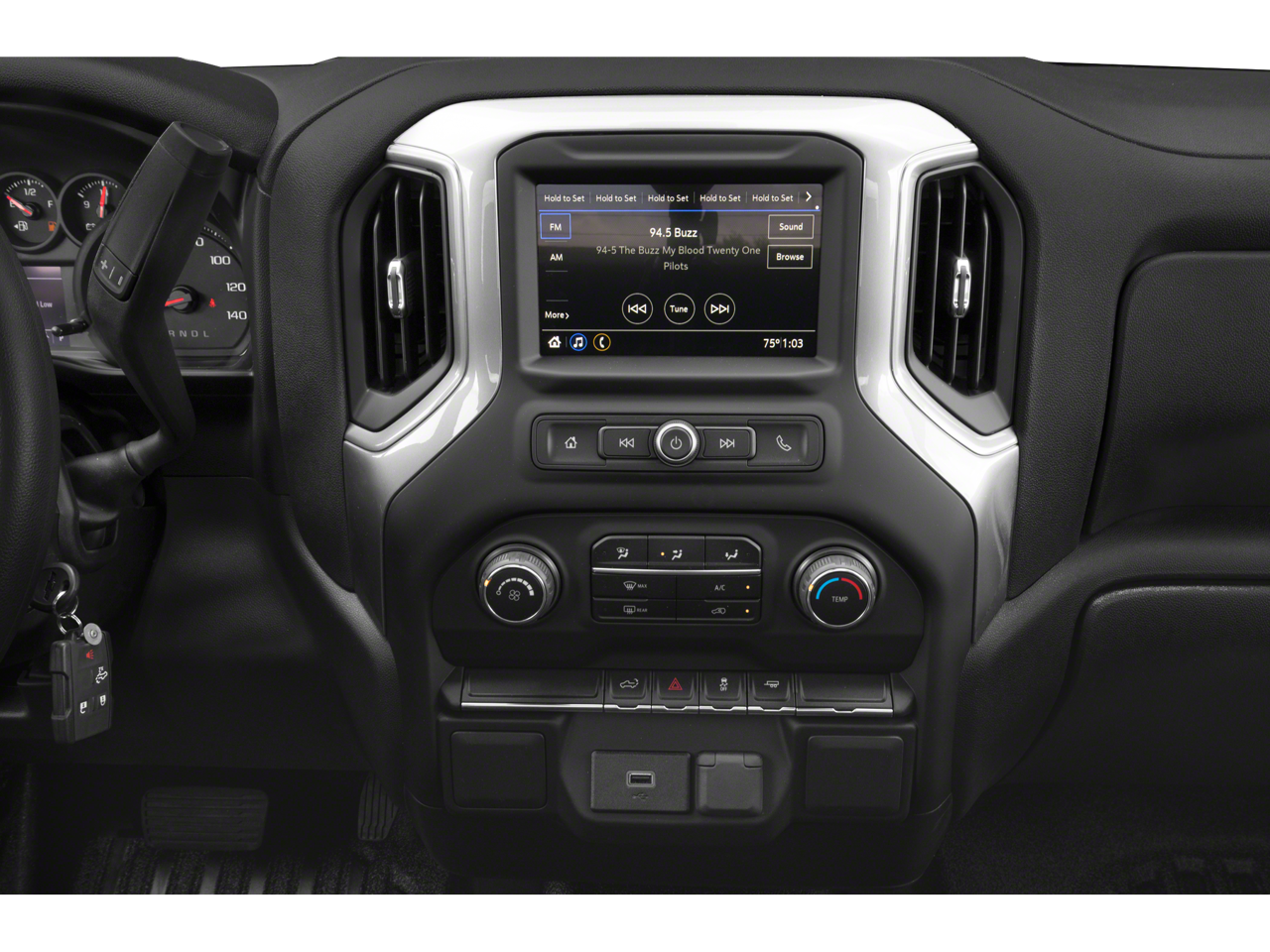

AUDIO SYSTEM, CHEVROLET INFOTAINMENT 3 SYSTEM

• 7" diagonal color touchscreen
• AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices
• voice command pass-through to phone
• wired Apple CarPlay and Android Auto capable. (STD)

TIRES, 255/70R17 ALL-SEASON, BLACKWALL

• (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with covered armrest storage (STD)

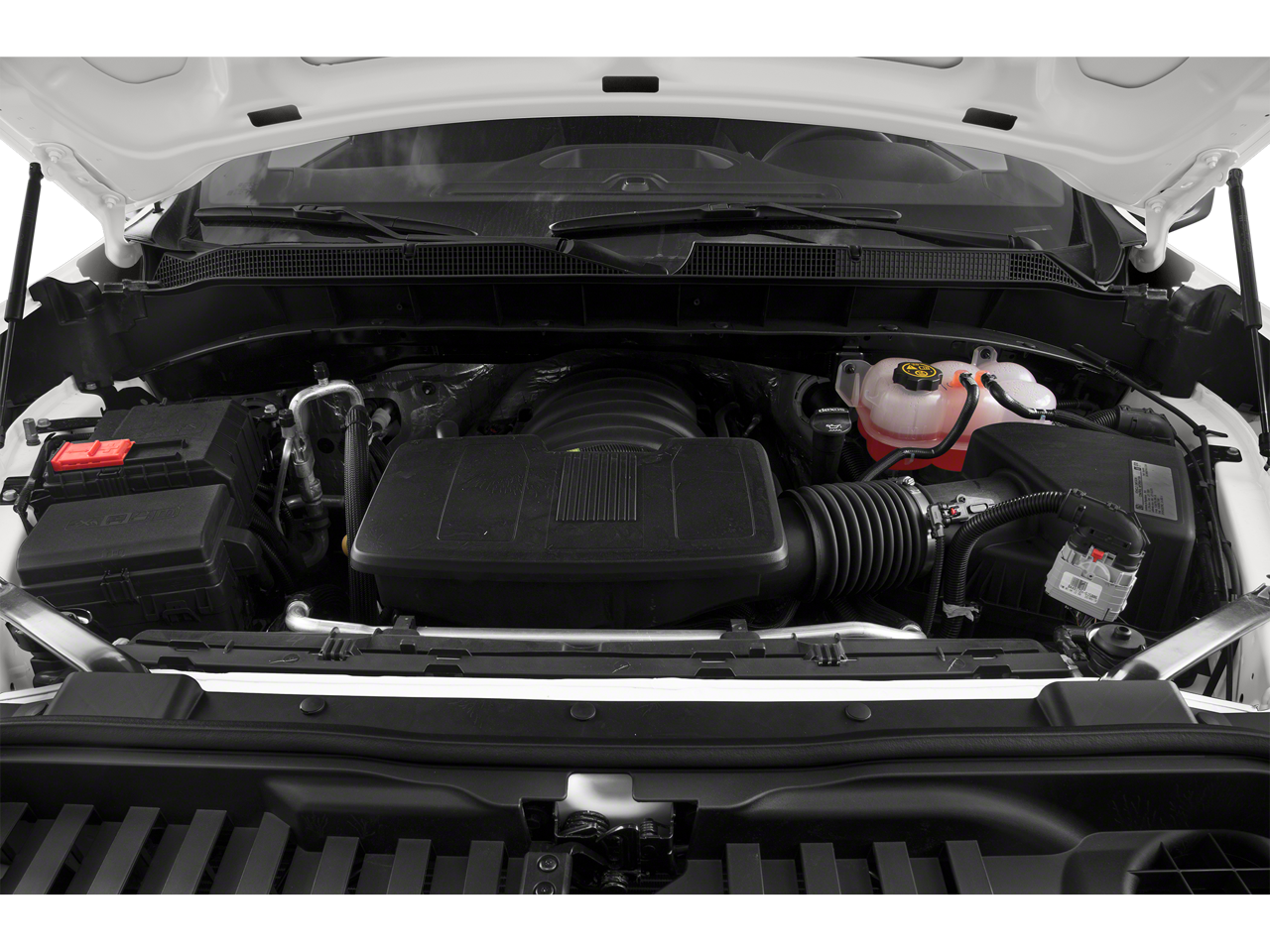

ENGINE, 4.3L ECOTEC3 V6

• with Active Fuel Management
• (285 hp [212 kW] @ 5300 rpm
• 305 lb-ft of torque [413 Nm] @ 3900 rpm) (STD)

• DURABED PICKUP BED (STD)
• REAR AXLE 3.42 RATIO
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• SUMMIT WHITE
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TIRE SPARE 255/70R17 ALL-SEASON BLACKWALL (STD)
• WHEELS 17" X 8" (43.2 CM X 20.3 CM) ULTRA SILVER PAINTED STEEL (STD)
• JET BLACK CLOTH SEAT TRIM
• AUDIO SYSTEM CHEVROLET INFOTAINMENT 3 SYSTEM 7" diagonal color touchscreen AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices voice command pass-through to phone wired Apple CarPlay and Android Auto capable. (STD)
• TIRES 255/70R17 ALL-SEASON BLACKWALL (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH with covered armrest storage (STD)
• ENGINE 4.3L ECOTEC3 V6 with Active Fuel Management (285 hp [212 kW] @ 5300 rpm 305 lb-ft of torque [413 Nm] @ 3900 rpm) (STD)
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tires - Front All-Season
• Tires - Rear All-Season
• Daytime Running Lights
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Bluetooth® Connection
• Split Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Power Outlet
• MP3 Capability
• Auxiliary Audio Input
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Back-Up Camera
• Driver Restriction Features
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2662
• Curb Weight - Rear (lbs): 1707
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Combined Wt Rating (lbs): 12800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 790
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1950
• Maximum Trailering Capacity (lbs): 10000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 50.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QBN
• Rear Tire Order Code: QBN
• Spare Tire Order Code: QBR
• Front Tire Size: 255/70R17
• Rear Tire Size: 255/70R17
• Spare Tire Size: 255/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.6
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Box Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 28.3
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 139.56
• Length, Overall (in): 229.5
• Width, Max w/o mirrors (in): 81.14
• Height, Overall (in): 75.63
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.22
• Ground Clearance, Rear (in): 8.22
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.18
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 89.1
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 43.11
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.06
• Front Hip Room (in): 60.9
• Summary
• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Regular Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.4
