• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl

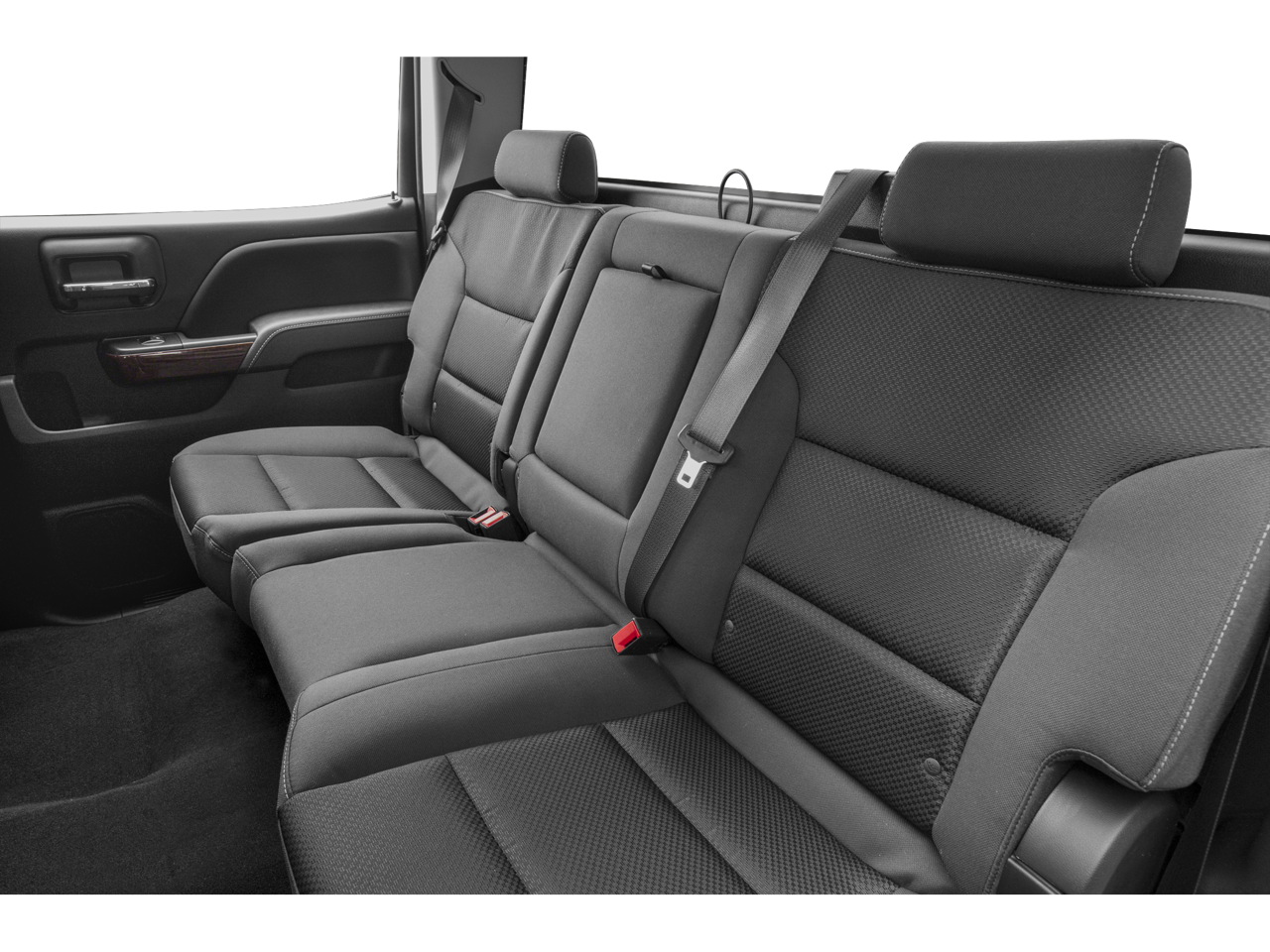

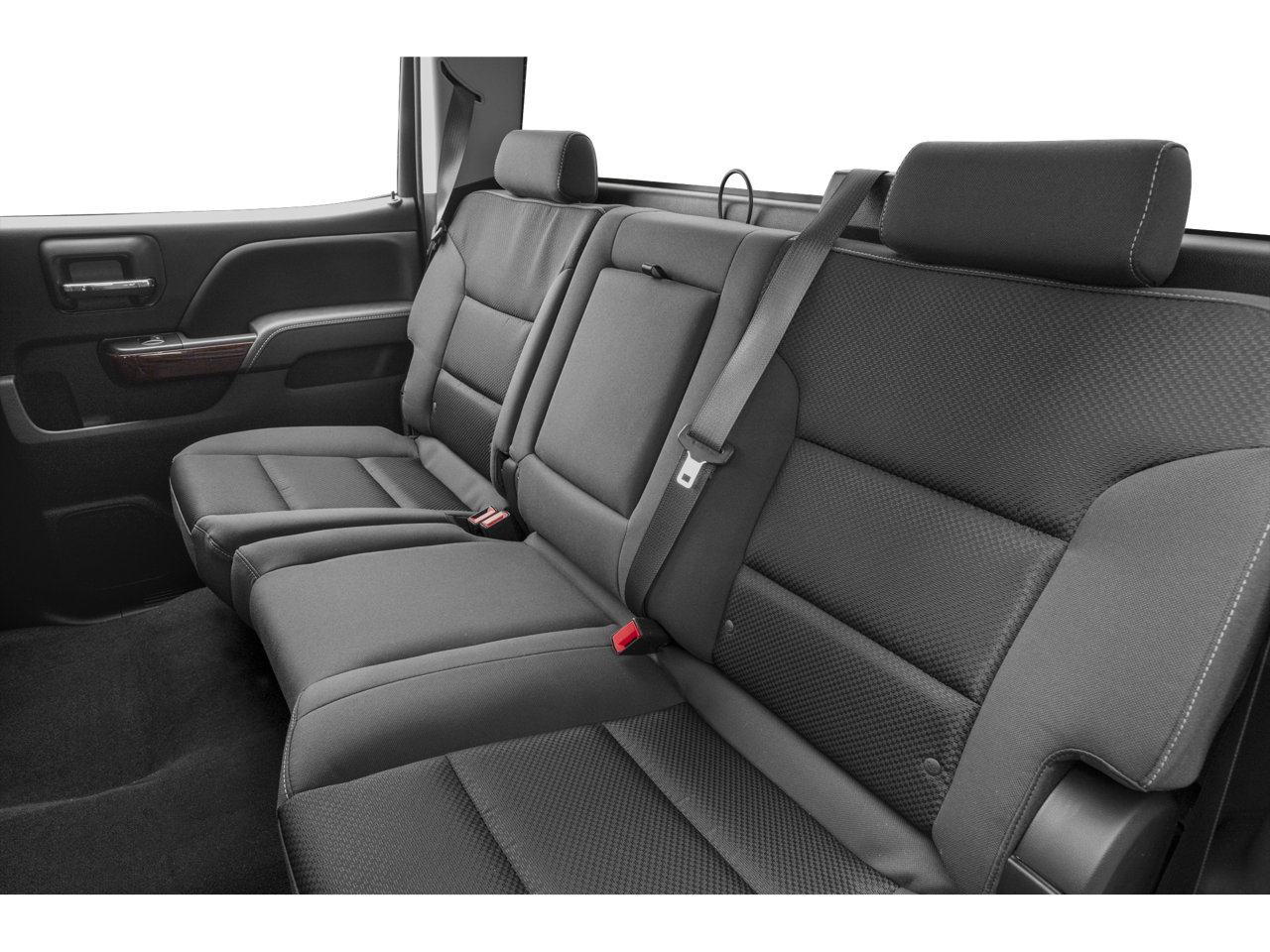

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

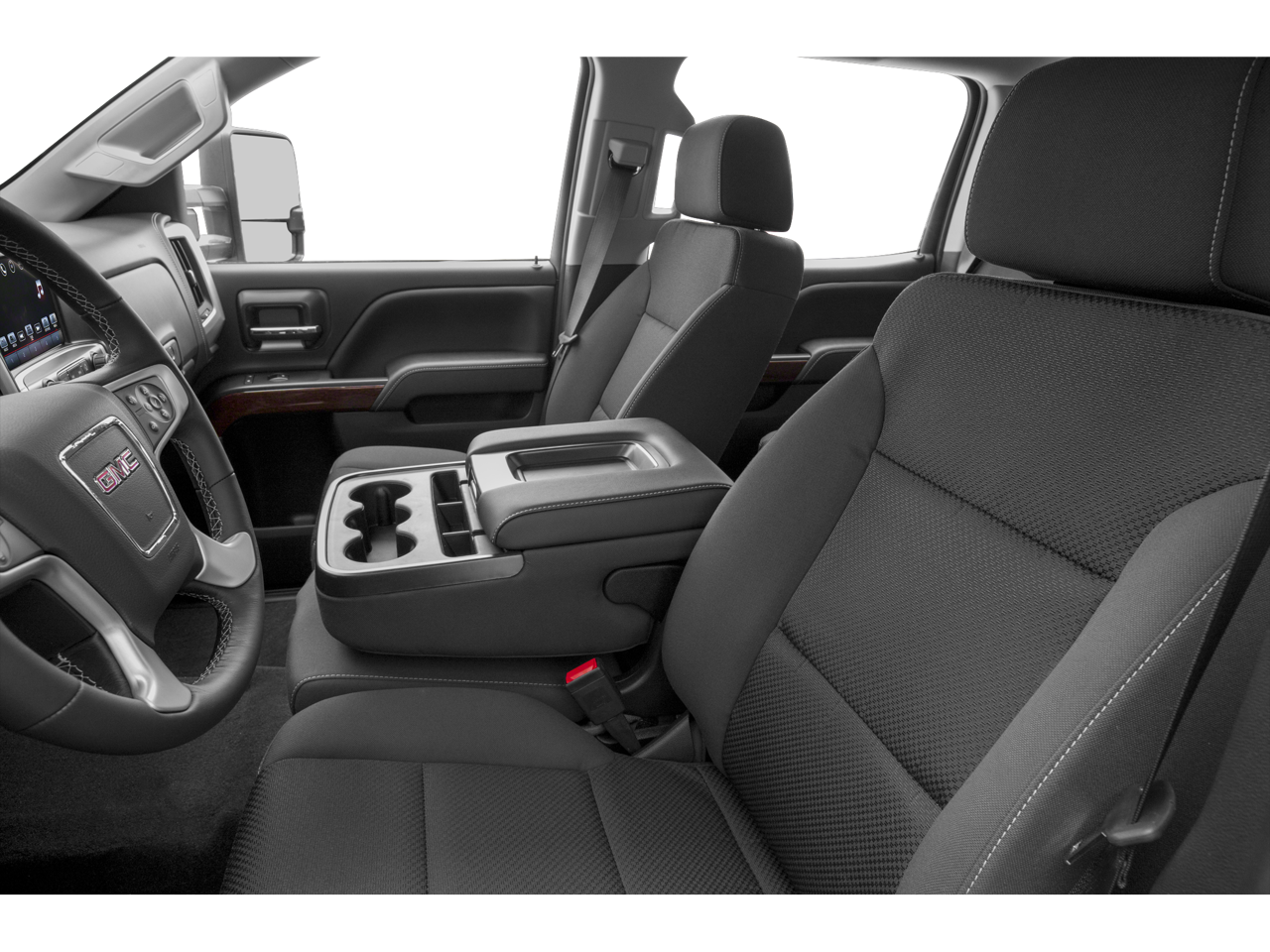

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.

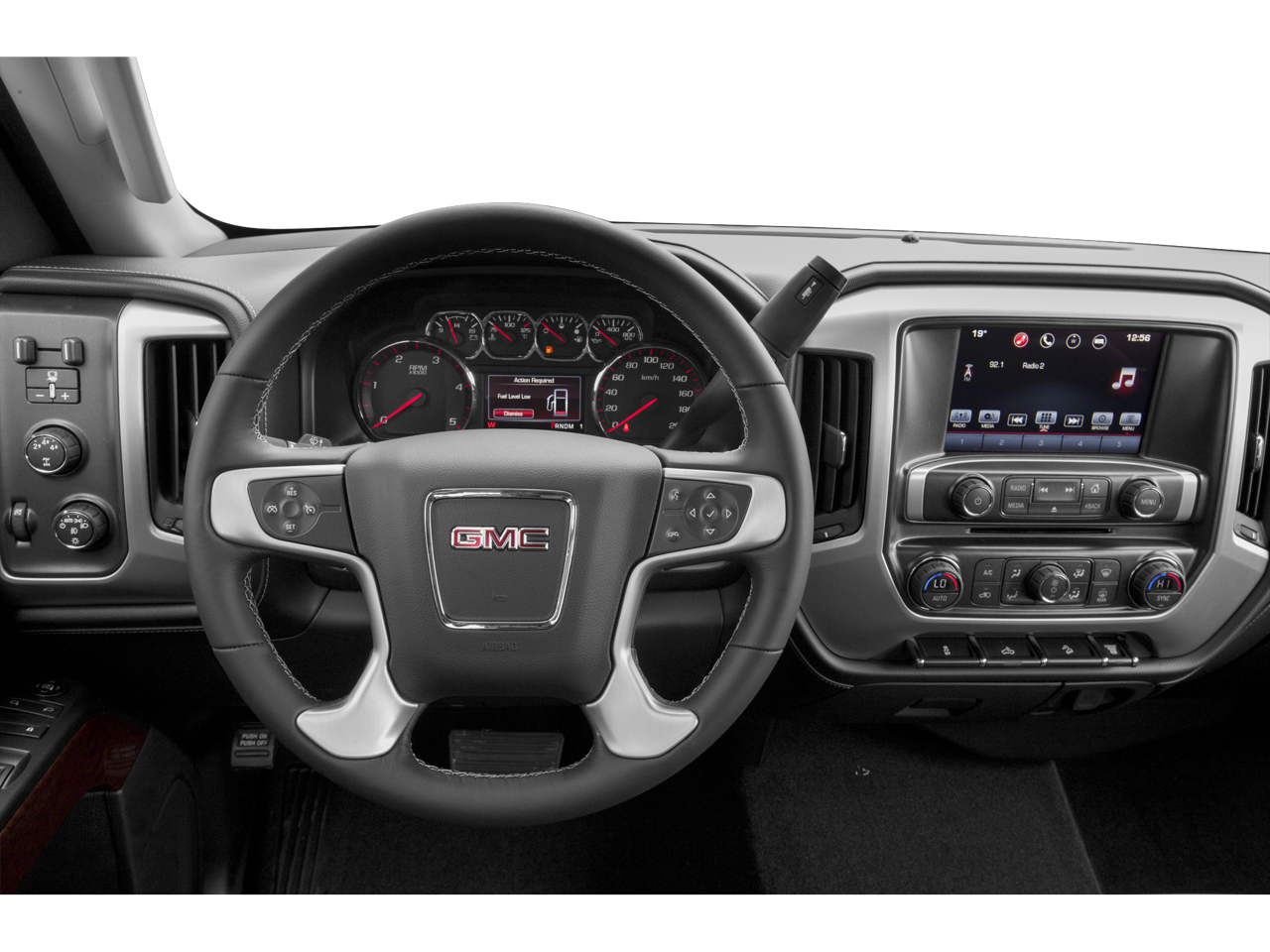

• Steering column, manual Tilt-Wheel
• Steering wheel, base
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors (Requires single rear wheels.)
• Chassis, single rear wheel
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated (If (ZW9) pickup box delete or (9J4) rear bumper delete is ordered (JL1) trailer brake controller is deleted and available to order as a free flow option.)
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Deleted when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)

• Airbags, Single-stage frontal airbags for driver and front outboard passenger (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete
• Rear Vision Camera (Not included when (ZW9) pickup box delete is ordered.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Teen Driver configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver

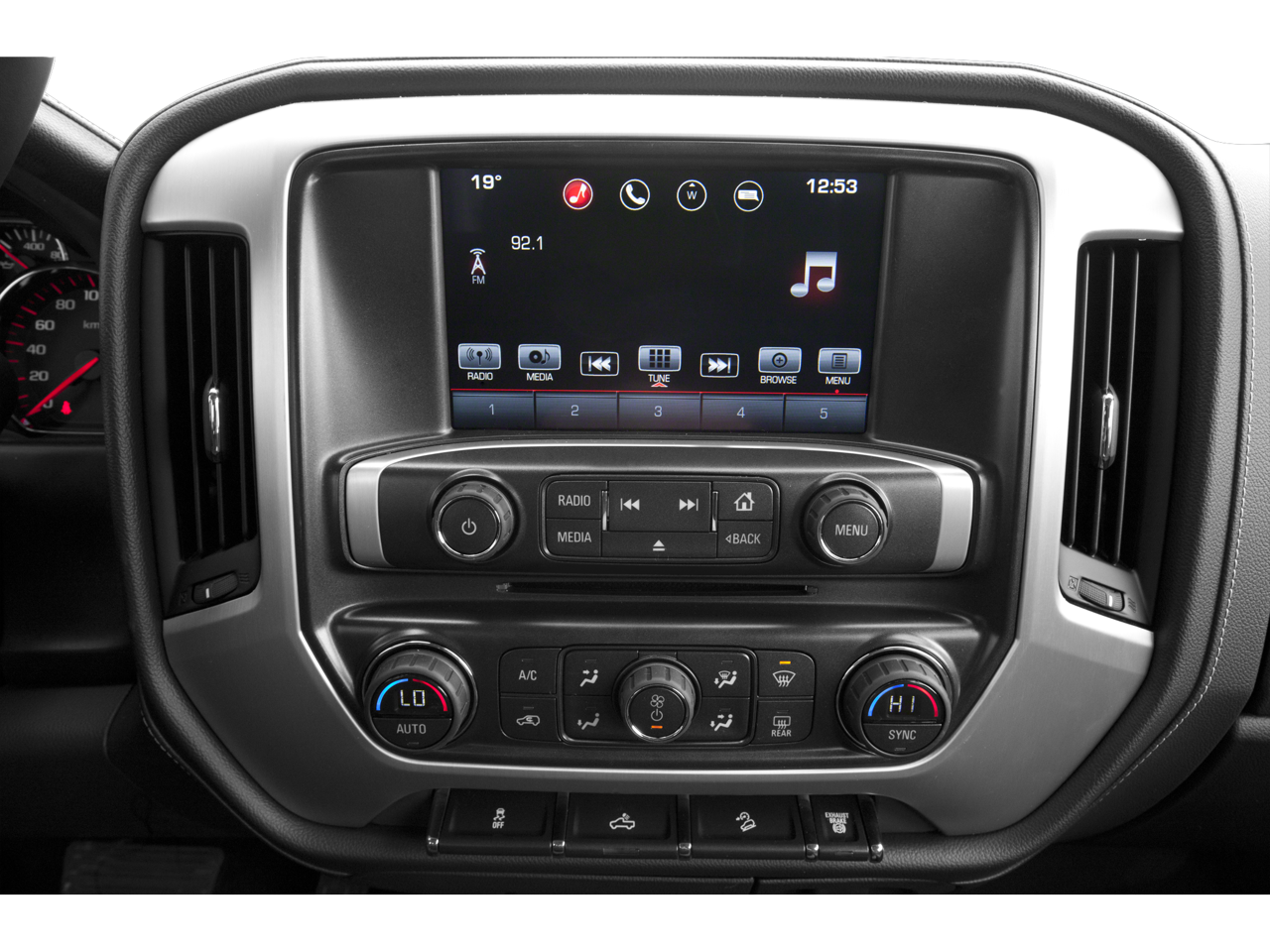

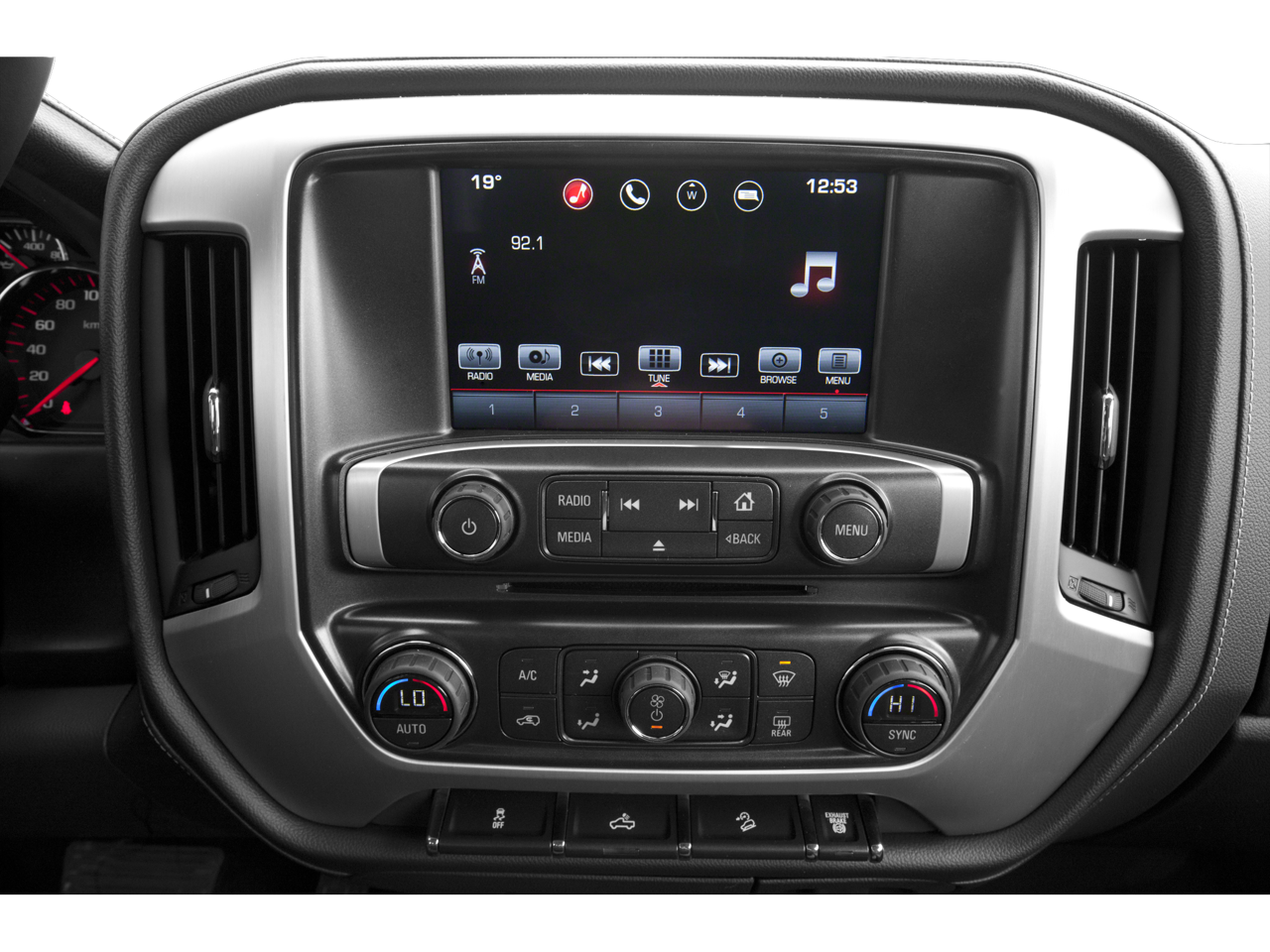

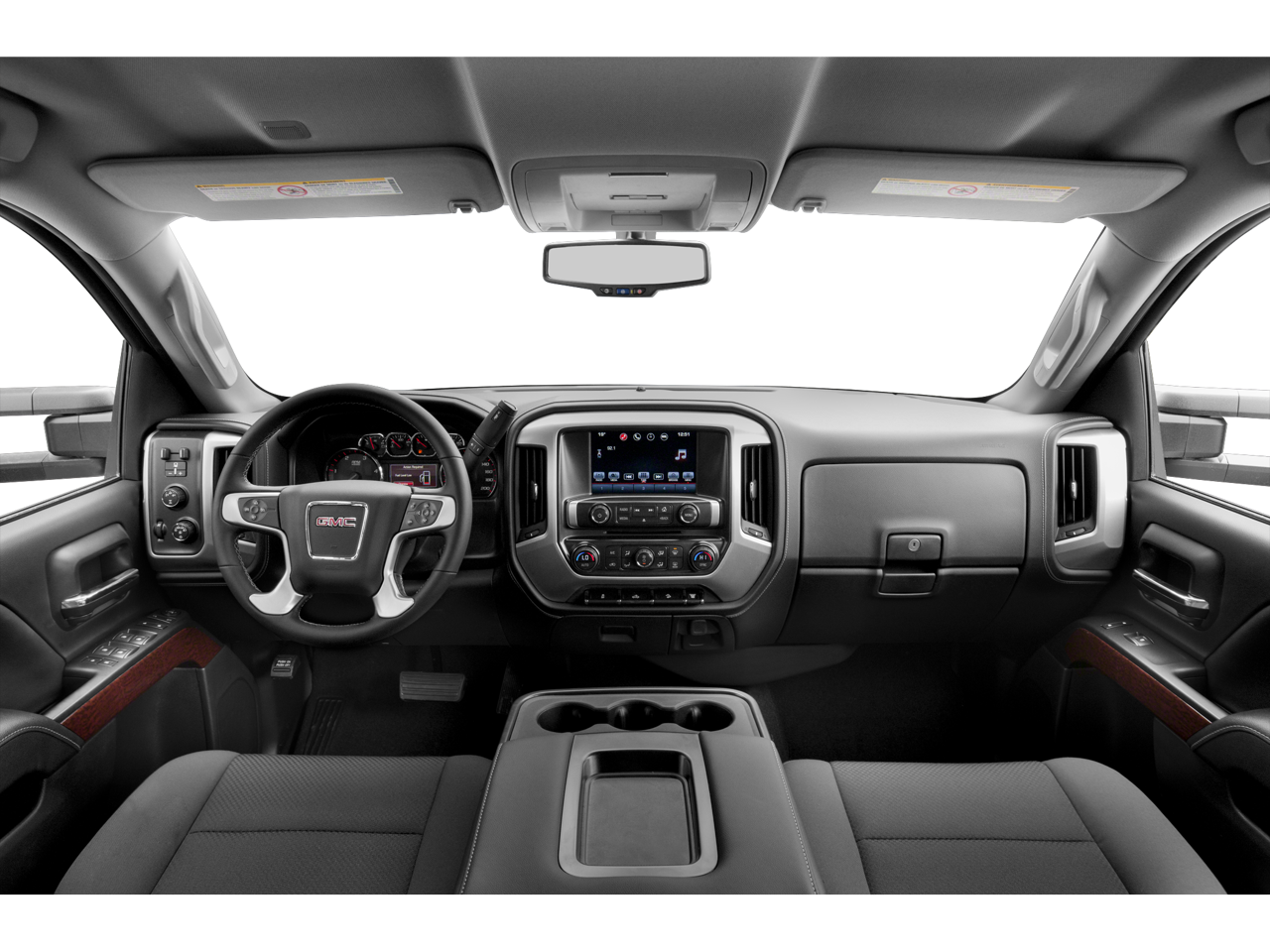

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH SCREEN WITH GMC INFOTAINMENT SYSTEM, AM/FM

• with USB ports
• auxiliary jack
• Bluetooth® streaming audio for music and most phones
• Pandora Internet radio and voice command pass-through to phone.

SIRIUSXM RADIO

• Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music
• plus sports
• news and entertainment. Plus listening on the app and online is included
• so you'll hear the best SiriusXM has to offer
• anywhere life takes you. Welcome to the world of SiriusXM.

GMC 4G LTE AND AVAILABLE BUILT-IN WI-FI HOTSPOT OFFERS A FAST AND RELIABLE INTERNET CONNECTION FOR UP TO 7 DEVICES;

• includes data trial for 1 month or 3GB (whichever comes first)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

PICKUP BOX

• (STD)

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode.

WHEELS, 18" (45.7 CM) PAINTED STEEL

• includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (STD)

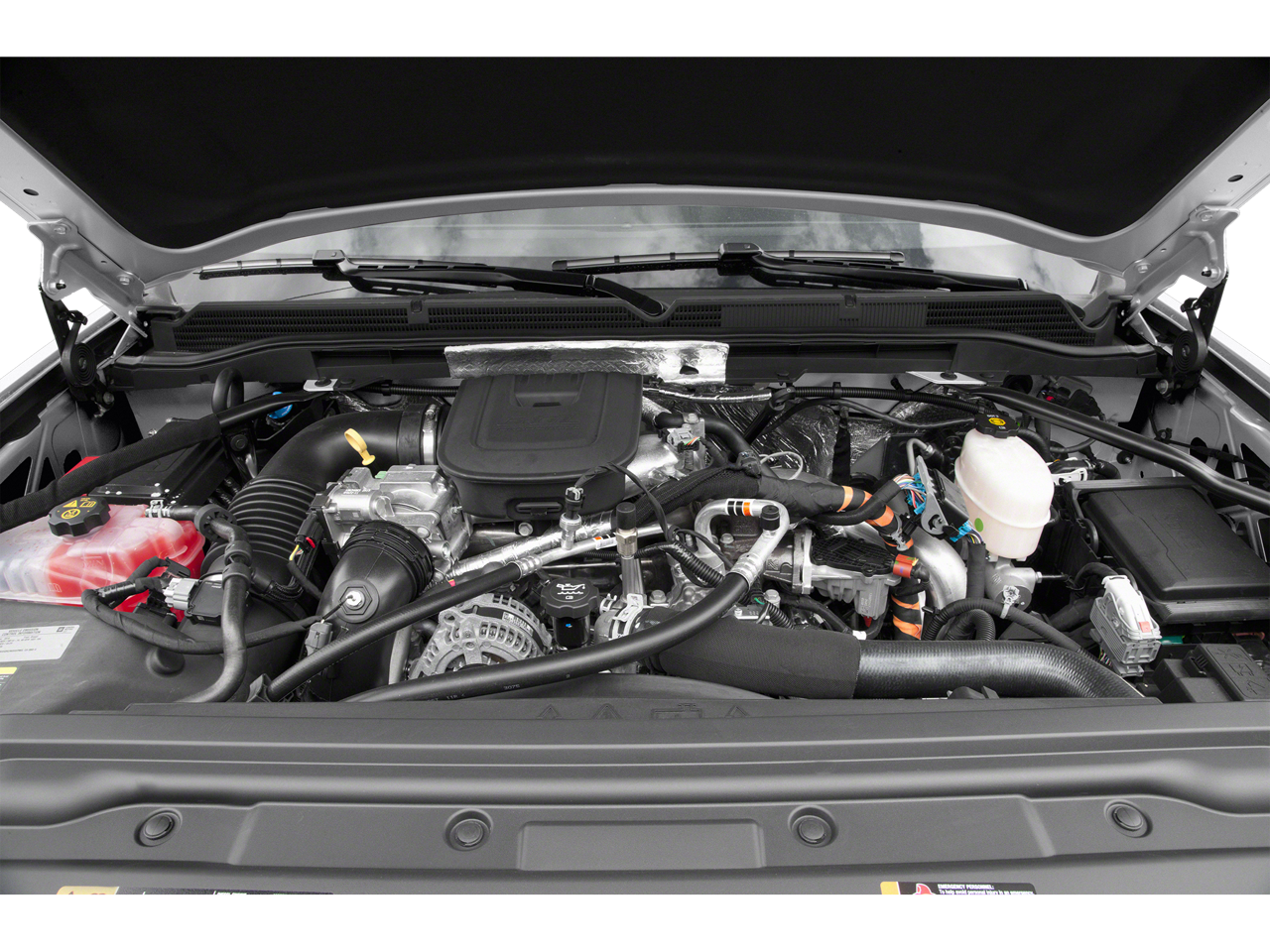

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• (445 hp [332 kW] @ 2800 rpm
• 910 lb-ft of torque [1220 Nm] @ 1600 rpm) Includes capped fuel fill
• (K40) exhaust brake and (K05) engine block heater.)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER RECLINE

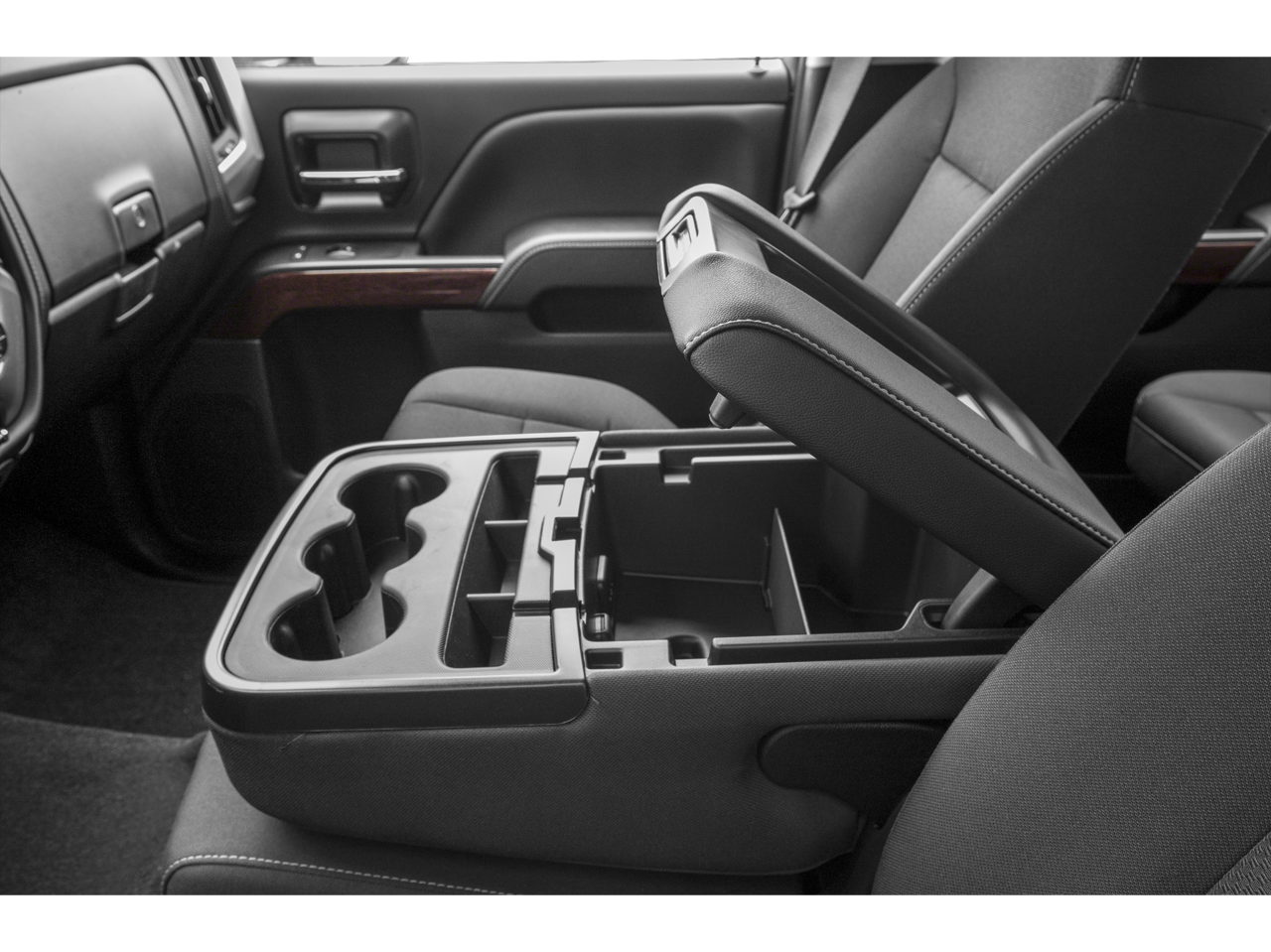

• with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

LICENSE PLATE KIT, FRONT

• Note: (VK3) deletes center lower bumper filler panel.

• GVWR 11 600 LBS. (5262 KG) WITH SINGLE REAR WHEELS
• AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH SCREEN WITH GMC INFOTAINMENT SYSTEM AM/FM with USB ports auxiliary jack Bluetooth® streaming audio for music and most phones Pandora Internet radio and voice command pass-through to phone.
• TIRES LT265/70R18E ALL-SEASON BLACKWALL (STD)
• GLASS DEEP-TINTED
• SUMMIT WHITE
• SIERRA CONVENIENCE PACKAGE includes (DPN) outside heated power-adjustable vertical camper mirrors (AQQ) Remote Keyless Entry (A91) remote locking tailgate (KI4) 110-volt AC power outlet (UF2) LED cargo box lighting and (AKO) deep tinted glass.
• ENGINE BLOCK HEATER
• TIRE SPARE LT265/70R18E ALL-SEASON BLACKWALL
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• WHEEL 18" X 8" (45.7 CM X 20.3 CM) FULL-SIZE STEEL SPARE. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• SIRIUSXM RADIO (subscription required)
• GMC 4G LTE AND AVAILABLE BUILT-IN WI-FI HOTSPOT OFFERS A FAST AND RELIABLE INTERNET CONNECTION FOR UP TO 7 DEVICES; includes data trial for 1 month or 3GB (whichever comes first)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK; includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp Includes (DD8) auto-dimming inside rearview mirror.)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• REMOTE LOCKING TAILGATE
• PICKUP BOX (STD)
• LED LIGHTING CARGO BOX with switch on center switch bank
• ENGINE BLOCK HEATER CREDIT
• PAINT SOLID
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode.
• WHEELS 18" (45.7 CM) PAINTED STEEL includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (STD)
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE (445 hp [332 kW] @ 2800 rpm 910 lb-ft of torque [1220 Nm] @ 1600 rpm) Includes capped fuel fill (K40) exhaust brake and (K05) engine block heater.)
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• LICENSE PLATE KIT FRONT Note: (VK3) deletes center lower bumper filler panel.
• EXHAUST BRAKE
• ONSTAR AND GMC CONNECTED SERVICES CAPABLE
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• HID headlights
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Bluetooth® Connection
• Split Bench Seat
• Driver Adjustable Lumbar
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Back-Up Camera
• Driver Restriction Features

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): 3919
• Curb Weight - Rear (lbs): 3129
• Gross Vehicle Weight Rating Cap (lbs): 11600
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 25100
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1370
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4250
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
• Maximum Trailering Capacity (lbs): 20000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Spare Tire Order Code: ZWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Spare Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): 5600
• Front Tire Capacity (lbs): 4800
• Rear Tire Capacity (lbs): 7050
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.7
• Length, Overall (in): 258.4
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.07
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.1
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.41
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.8
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.5
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
