• 6-speaker audio system
• Air conditioning, dual-zone automatic climate control
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Cruise control, steering wheel-mounted
• Defogger, rear-window electric
• Door locks, power
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Mirror, inside rearview auto-dimming
• Pedals, power-adjustable
• Power outlet, 110-volt AC
• Remote Keyless Entry
• Remote Keyless Entry
• Remote vehicle starter system
• Seat trim, Leather-appointed front seats
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seating, heated driver and front passenger
• Single-slot CD/MP3 player (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• SiriusXM Satellite Radio (subscription required)
• Steering column, manual Tilt-Wheel
• Steering wheel audio controls
• Steering wheel, leather-wrapped with audio and cruise controls
• Theft-deterrent system, unauthorized entry
• Universal Home Remote (Not included when (TRW) provision for cab roof-mounted lamp or (VYU) Snow Plow Prep Package are ordered.)
• Visors, driver and front passenger illuminated vanity mirrors
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Cargo tie downs (4), movable upper (Requires (E63) pickup box.) (Not available with (ZW9) pickup box delete.)
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball
• Suspension Package, Handling/Trailering, heavy-duty includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated (Standard with (E63) pickup box. Available to order with (ZW9) pickup box delete.)
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Deleted when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)

• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar Equipped (subscription required)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

SLT PREFERRED EQUIPMENT GROUP

• includes standard equipment

DURAMAX PLUS PACKAGE

• includes (LML) Duramax 6.6L Turbo Diesel V8 engine
• (MW7) Allison 1000 6-speed automatic transmission
• (UQA) Bose premium audio system
• (UD5) front and rear park assist and (IO6) 8" Diagonal Color Touch Screen Navigation with IntelliLink

SEATS, FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET

• with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters
• including 2-way power lumbar control
• 2-position driver memory
• adjustable head restraints
• (D07) floor console and storage pockets.

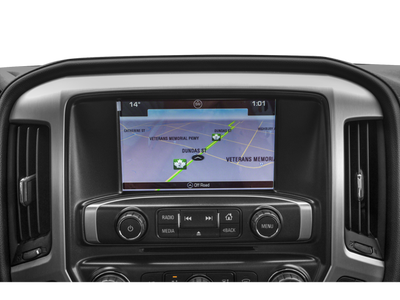

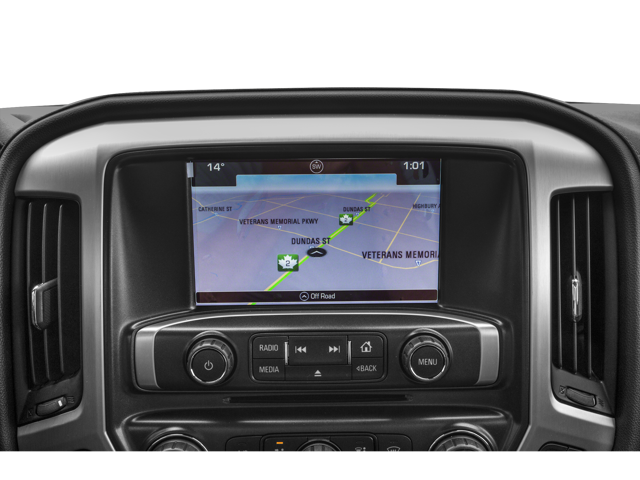

AUDIO SYSTEM, 8" DIAGONAL COLOR TOUCH SCREEN NAVIGATION WITH INTELLILINK, AM/FM/SIRIUSXM WITH USB PORTS

• auxiliary jack
• SD card slot
• Bluetooth® streaming audio for music and most phones
• hands-free smartphone integration
• Pandora Internet radio and voice-activated technology for radio and phone

WHEELS, 20" (50.8 CM) FORGED POLISHED ALUMINUM

• includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel.

CONSOLE, FLOOR MOUNTED, RECONFIGURABLE

• with moveable cup holders
• cell phone storage
• power cord management and hanging file holder capability

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake.

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• TIRES LT265/60R20E ALL-TERRAIN BLACKWALL
• SLT PREFERRED EQUIPMENT GROUP includes standard equipment
• DURAMAX PLUS PACKAGE includes (LML) Duramax 6.6L Turbo Diesel V8 engine (MW7) Allison 1000 6-speed automatic transmission (UQA) Bose premium audio system (UD5) front and rear park assist and (IO6) 8" Diagonal Color Touch Screen Navigation with IntelliLink
• FRONT AND REAR PARK ASSIST ULTRASONIC
• SEATS FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control 2-position driver memory adjustable head restraints (D07) floor console and storage pockets.
• AUDIO SYSTEM 8" DIAGONAL COLOR TOUCH SCREEN NAVIGATION WITH INTELLILINK AM/FM/SIRIUSXM WITH USB PORTS auxiliary jack SD card slot Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio and voice-activated technology for radio and phone
• WHEELS 20" (50.8 CM) FORGED POLISHED ALUMINUM includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel.
• COCOA/DUNE LEATHER-APPOINTED FRONT SEAT TRIM
• ENGINE BLOCK HEATER
• GVWR 10 000 LBS. (4536 KG)
• BRONZE ALLOY METALLIC
• CONSOLE FLOOR MOUNTED RECONFIGURABLE with moveable cup holders cell phone storage power cord management and hanging file holder capability
• LPO ALL-WEATHER FLOOR MATS FRONT AND REAR
• SUNROOF POWER
• PAINT SOLID
• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B20-DIESEL COMPATIBLE (397 hp [296.0 kW] @ 3000 rpm 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake.
• STEERING WHEEL HEATED LEATHER WRAPPED WITH AUDIO AND CRUISE CONTROLS
• EXHAUST BRAKE
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• BOSE SOUND WITH 6 SPEAKER SYSTEM
• STEERING COLUMN MANUAL TILT-WHEEL AND TELESCOPING
• REAR AXLE 3.73 RATIO
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Tow Hitch
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• AM/FM Stereo
• Satellite Radio
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Requires Subscription
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Leather Seats
• Heated Front Seat(s)
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Floor Mats
• Power Windows
• Power Door Locks
• Cruise Control
• Security System
• Adjustable Pedals
• Remote Engine Start
• Keyless Entry
• Power Door Locks
• Universal Garage Door Opener
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Telematics
• Navigation from Telematics
• Requires Subscription
• Back-Up Camera
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6700
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 4511
• Curb Weight - Front (lbs): 3788
• Curb Weight - Rear (lbs): 2872
• Curb Weight - Rear (lbs): 2736
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 16000
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4275
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QFC
• Front Tire Order Code: QWF
• Rear Tire Order Code: QFC
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/60R20E
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/60R20E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.50
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.23
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.65
• Ground Clearance, Rear (in): 9.65
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

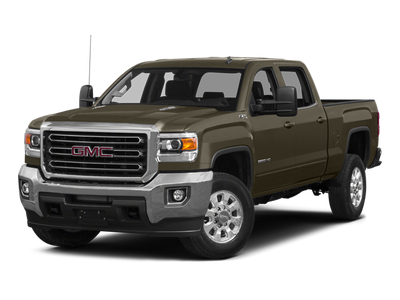

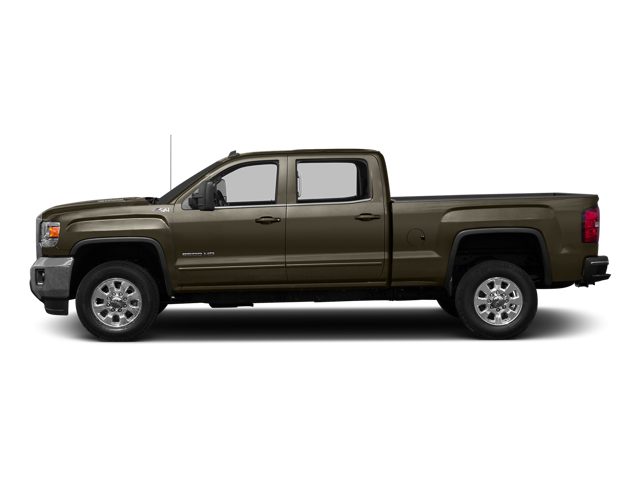

• Vehicle Name: GMC Sierra 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
