• Air conditioning, single-zone manual front climate control
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Audio system feature, speaker system (Included with (5B5) power windows, doors and locks, SEO. Includes 4 speakers on Regular Cab models and 6 speakers on Extended and Crew Cab models.)
• Coat hooks, rear driver and passenger side

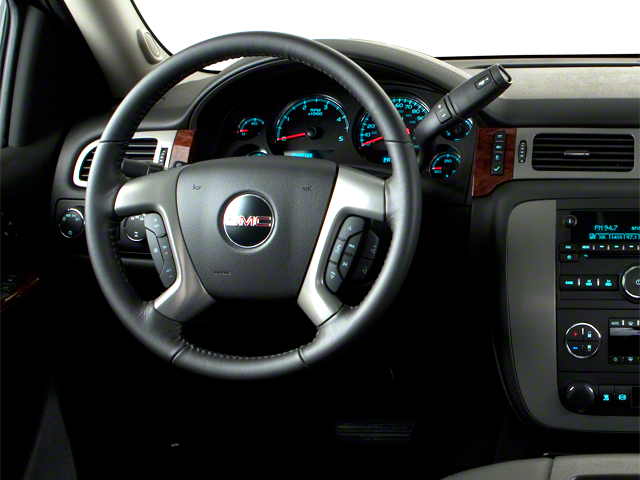

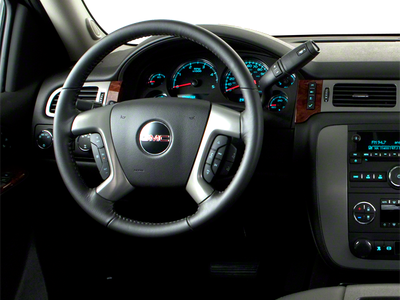

• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Floor covering, Black rubberized vinyl
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Seat trim, Vinyl

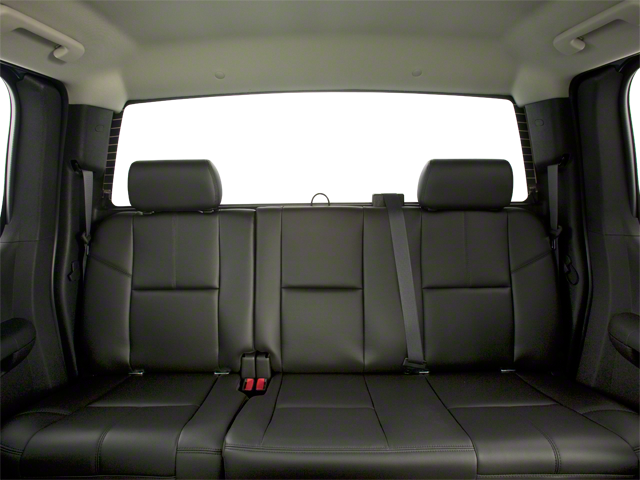

• Seat, rear bench (folds up), full width, folding, 3-passenger (includes child seat top tether anchor) (Standard with Extended Cab models only)

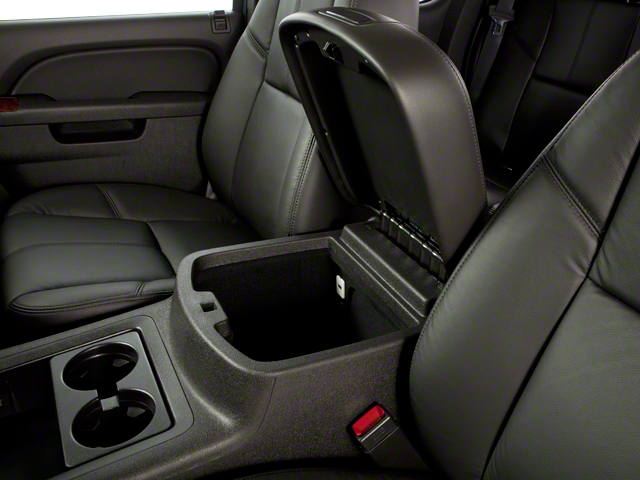

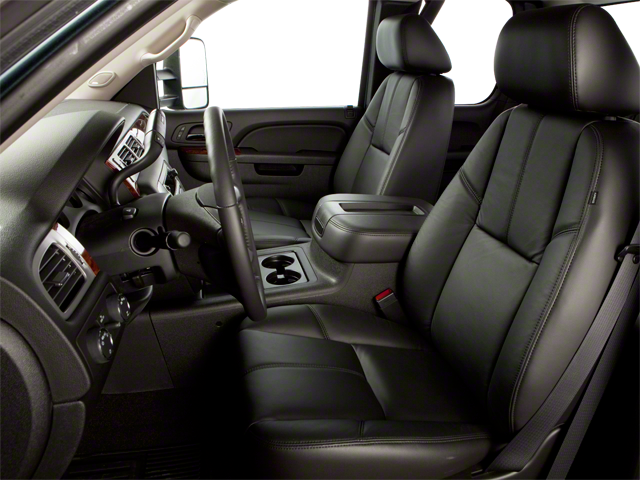

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• SiriusXM Satellite Radio, delete
• Steering wheel includes theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, fixed, rear access door (Standard with Extended Cab models only)

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust aluminized stainless-steel muffler and tailpipe
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Rear axle, 3.73 ratio
• Rear wheel drive
• Recovery hooks, front, Black
• Steering, power, recirculating ball
• Suspension Package, Handling/Trailering, heavy-duty includes 35mm twin tube shock absorbers and 36mm front stabilizer bar
• Suspension, front independent, torsion bar
• Suspension, rear 4+1 multi-leaf springs

• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitor System (does not apply to spare tire)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

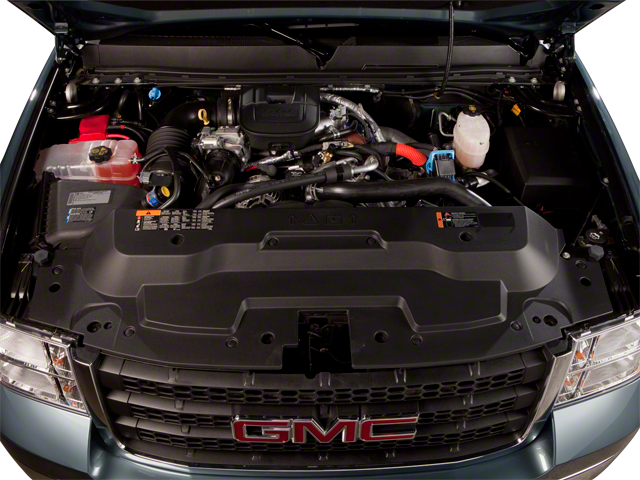

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) wideside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

DARK TITANIUM, VINYL SEAT TRIM

• (STD)

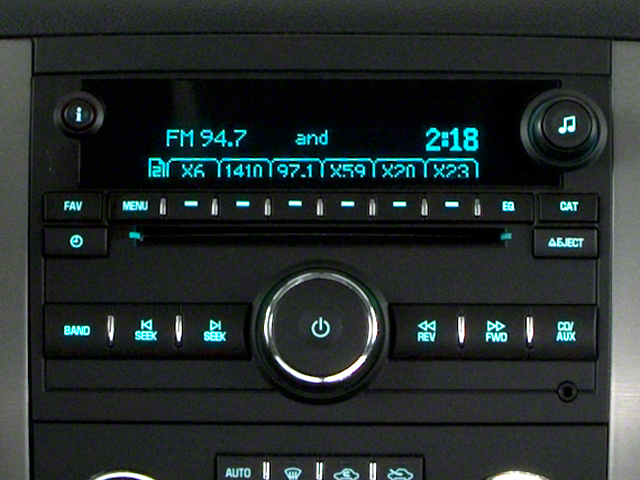

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan and digital clock (STD)

• LICENSE PLATE FRONT MOUNTING PACKAGE
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• REAR AXLE 3.73 RATIO
• GVWR 9500 LBS. (4309 KG)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• PAINT SOLID
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) wideside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• DARK TITANIUM VINYL SEAT TRIM (STD)
• SUMMIT WHITE
• TIRES LT245/75R17E ALL-SEASON BLACKWALL (STD)
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan and digital clock (STD)
• WHEELS 17" (43.2 CM) STEEL includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (STD)
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• Rear Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat
• Vinyl Seats
• Rear Bench Seat
• Adjustable Steering Wheel
• Cruise Control
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3435
• Curb Weight - Rear (lbs): 2592
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1470
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2450
• Maximum Trailering Capacity (lbs): 14300
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT245/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24
• Steering Ratio (:1), At Lock: 3.57
• Turning Diameter - Curb to Curb (ft): 47.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 144.2
• Length, Overall w/o rear bumper (in): 230.6
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 77.9
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 52.6
• Front Bumper to Back of Cab (in): 141.4
• Cab to Axle (in): 41.6
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.8
• Ground Clearance, Rear (in): 8.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 60.3
• Second Head Room (in): 39.5
• Second Leg Room (in): 34.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 61.8
• Summary

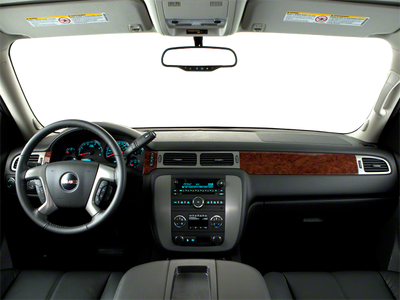

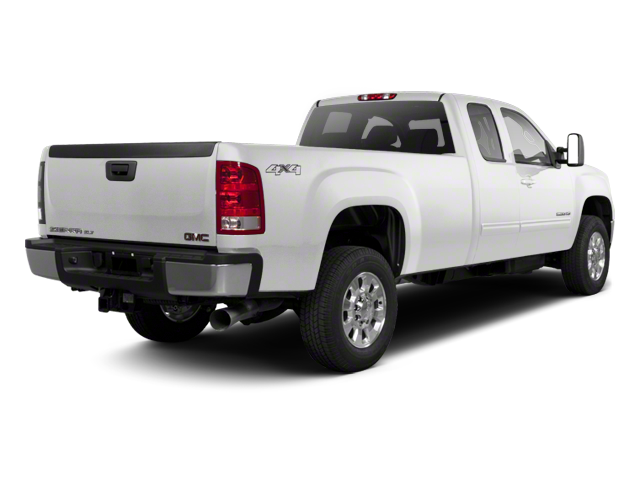

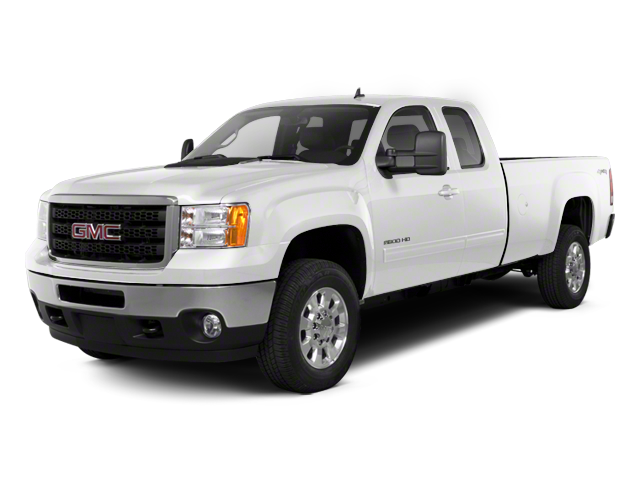

• Vehicle Name: GMC Sierra 2500HD
• Body Style: Ext Cab 6.5' Fleetside
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
