• Air conditioning, rear auxiliary
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right-front passenger
• Assist handles, front passenger and second row outboard
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• Audio system, AM/FM stereo with MP3 compatible 6-disc in-dash CD changer seek-and-scan, digital clock and auto-tone control and auxiliary audio input jack (Not available with (PCJ) Sun, Entertainment and Destinations Package.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface) with specific steering wheel controls
• Console, floor with storage area, cup holders and integrated second row audio controls (Includes woodgrain covered forward storage.)
• Cruise control, electronic with set and resume speed
• Defogger, rear-window electric
• Door locks, power programmable with lockout protection
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted front and second row, removable
• Headliner, cloth
• Heater, rear auxiliary with rear passenger heating ducts
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Mirror, inside rearview auto-dimming
• Pedals, power-adjustable for accelerator and brake (Includes memory function with (AN3) front bucket seats.)
• Power outlets, 5 auxiliary, 12-volt includes 2 on the instrument panel, 1 in the cargo area, 1 inside the center console and 1 at the back of the console.
• Rear Parking Assist, Ultrasonic with rearview LED display and audible warning
• Remote vehicle starter system, includes Remote Keyless Entry
• Seat adjuster, driver power
• Seat release, second row, power release only
• Seats, heated and cooled driver and front passenger
• Seats, heated second row
• Seats, second row bucket with leather-appointed seating, reclining
• Seats, third row 50/50 split-bench 3-passenger, removable, all-belts-to-seat
• Steering wheel, leather-wrapped
• Theft-deterrent system, vehicle, PASS-Key III
• Universal Home Remote, includes garage door opener, programmable
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on
• Windows, power with driver Express-Down and lockout features
• XM Radio (subscription required)

• Alternator, 160 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc, VAC power
• Differential, heavy-duty locking rear
• GVWR, 7100 lbs. (3221 kg) (Standard on 2WD models.)
• Rear wheel drive
• Steering, power
• Suspension Package, Autoride, bi-state variable shock dampening and rear air-assisted load-leveling includes (G69) automatic air level control
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Trailering equipment includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver

• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps with automatic exterior lamp control
• LATCH system (Lower Anchors and Top tethers for CHildren) for child safety seats
• OnStar Equipped (subscription required)
• Safety belts, 3-point, driver and front passenger in all seating positions
• StabiliTrak, stability control system with traction control
• Tire Pressure Monitoring System (does not apply to spare tire)

SUNROOF, POWER, TILT-SLIDING

• with express-open and close and wind deflector

ENGINE, VORTEC 5.3L V8 SFI

• with Active Fuel Management (320 hp [238.6 kW] @ 5200 rpm
• 340 lb-ft of torque [459.0 N-m] @ 4200 rpm)
• iron block (STD)

AUDIO SYSTEM WITH NAVIGATION, AM/FM STEREO WITH MP3 COMPATIBLE CD/DVD PLAYER

• and DVD-based navigation
• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume
• TheftLock
• auxiliary audio input jack and voice recognition
• plays CD or DVD in upper slot

SUN, ENTERTAINMENT AND DESTINATIONS PACKAGE

• includes (UVB) AM/FM stereo with MP3 compatible CD/DVD player and DVD-based navigation
• (U42) rear seat entertainment system
• (UVC) rearview camera system and (CF5) power sunroof

WHEELS, 4-20" X 8.5" (50.8 CM X 21.6 CM) POLISHED ALUMINUM

• (STD)

LTZ PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT BUCKET

• with Perforated leather-appointed seating
• (AG1) 12-way power driver and (AG2) front passenger seat adjusters
• power lumbar control
• heated and cooled seats
• 2-position driver memory (including lumbar)
• adjustable head restraints
• storage pockets and floor console (STD)

XM NAVTRAFFIC

• enhances your vehicle's GPS navigation system by showing real-time traffic data when it's needed most-while you're driving. Available in over 80 markets
• XM NavTraffic displays various traffic-impacting incidents such as construction
• road closures
• accidents and disabled vehicles so you can take alternate routes to get to your destination faster. Traffic flow data is also available in select markets
• showing average traffic speed and estimated drive time along your route. For more information
• visit gm.xmradio.com/navtraffic

ENTERTAINMENT SYSTEM, REAR SEAT DVD PLAYER

• with remote control
• overhead display
• 2 sets of 2-channel wireless infrared headphones and auxiliary audio/video input jacks

TRANSMISSION, 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

• TIRES P275/55R20 ALL-SEASON BLACKWALL
• REARVIEW CAMERA SYSTEM
• REAR AXLE 3.08 RATIO
• SUNROOF POWER TILT-SLIDING with express-open and close and wind deflector
• ENGINE VORTEC 5.3L V8 SFI with Active Fuel Management (320 hp [238.6 kW] @ 5200 rpm 340 lb-ft of torque [459.0 N-m] @ 4200 rpm) iron block (STD)
• LICENSE PLATE BRACKET FRONT
• AUDIO SYSTEM WITH NAVIGATION AM/FM STEREO WITH MP3 COMPATIBLE CD/DVD PLAYER and DVD-based navigation seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume TheftLock auxiliary audio input jack and voice recognition plays CD or DVD in upper slot
• SUN ENTERTAINMENT AND DESTINATIONS PACKAGE includes (UVB) AM/FM stereo with MP3 compatible CD/DVD player and DVD-based navigation (U42) rear seat entertainment system (UVC) rearview camera system and (CF5) power sunroof
• EBONY CUSTOM PERFORATED LEATHER-APPOINTED SEAT TRIM
• WHEELS 4-20" X 8.5" (50.8 CM X 21.6 CM) POLISHED ALUMINUM (STD)
• LTZ PREFERRED EQUIPMENT GROUP includes standard equipment
• WHITE DIAMOND TRICOAT
• SEATS FRONT BUCKET with Perforated leather-appointed seating (AG1) 12-way power driver and (AG2) front passenger seat adjusters power lumbar control heated and cooled seats 2-position driver memory (including lumbar) adjustable head restraints storage pockets and floor console (STD)
• XM NAVTRAFFIC enhances your vehicle's GPS navigation system by showing real-time traffic data when it's needed most-while you're driving. Available in over 80 markets XM NavTraffic displays various traffic-impacting incidents such as construction road closures accidents and disabled vehicles so you can take alternate routes to get to your destination faster. Traffic flow data is also available in select markets showing average traffic speed and estimated drive time along your route. For more information visit gm.xmradio.com/navtraffic
• ENTERTAINMENT SYSTEM REAR SEAT DVD PLAYER with remote control overhead display 2 sets of 2-channel wireless infrared headphones and auxiliary audio/video input jacks
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• Air Suspension
• Locking/Limited Slip Differential
• Rear Wheel Drive
• Tow Hitch
• Air Suspension
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front Performance
• Tires - Rear Performance
• Conventional Spare Tire
• Luggage Rack
• Luggage Rack
• Running Boards/Side Steps
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Mirror Memory
• Power Folding Mirrors
• Privacy Glass
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Rain Sensing Wipers
• Intermittent Wipers
• AM/FM Stereo
• CD Changer
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Premium Sound System
• Rear Seat Audio Controls
• Power Outlet
• Satellite Radio
• Requires Subscription
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Leather Seats
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Cooled Front Seat(s)
• Bucket Seats
• Rear Bucket Seats
• Heated Front Seat(s)
• Cooled Front Seat(s)
• Heated Rear Seat(s)
• Power Driver Seat
• Power Passenger Seat
• 3rd Row Seat
• Pass-Through Rear Seat
• Rear Seat Audio Controls
• Woodgrain Interior Trim
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Power Windows
• Adjustable Pedals
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Cruise Control
• Universal Garage Door Opener
• Immobilizer
• Climate Control
• Multi-Zone A/C
• A/C
• Rear A/C
• A/C
• Rear A/C
• Rear Defrost
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Rear Reading Lamps
• Rear Parking Aid
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag
• Telematics
• Navigation from Telematics
• Requires Subscription
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3200
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2697
• Curb Weight - Rear (lbs): 2565
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 810
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Coil springs
• Spring Capacity - Front (lbs): 3250
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3200
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46.0
• Shock Absorber Diameter - Rear (mm): 46.0
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.1
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.8
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: ZVL
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2134
• Rear Tire Capacity (lbs): 2134
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 17.75
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116.0
• Length, Overall w/rear bumper (in): 202.0
• Width, Max w/o mirrors (in): 79.0
• Height, Overall (in): 76.9
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 31.7
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 9.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 81.4
• Cargo Area Length @ Floor to Seat 2 (in): 49.4
• Cargo Area Length @ Floor to Seat 3 (in): 15.2
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.10
• Cargo Box (Area) Height (in): 41.7
• Cargo Volume to Seat 1 (ft³): 108.9
• Cargo Volume to Seat 2 (ft³): 60.3
• Cargo Volume to Seat 3 (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 39.2
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 60.6
• Third Head Room (in): 37.9
• Third Leg Room (in): 25.6
• Third Shoulder Room (in): 61.7
• Third Hip Room (in): 49.1
• Summary

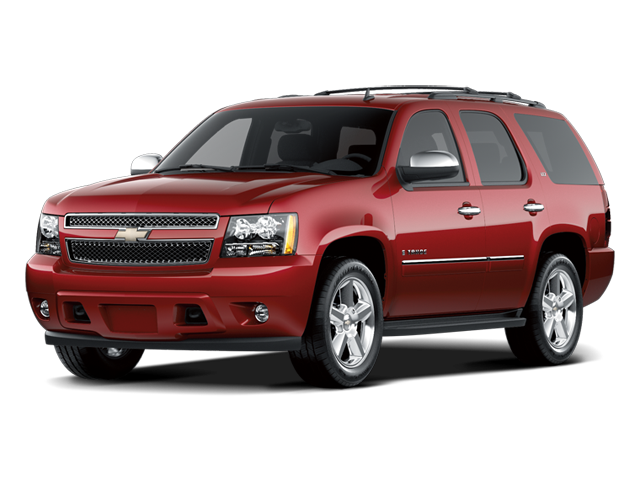

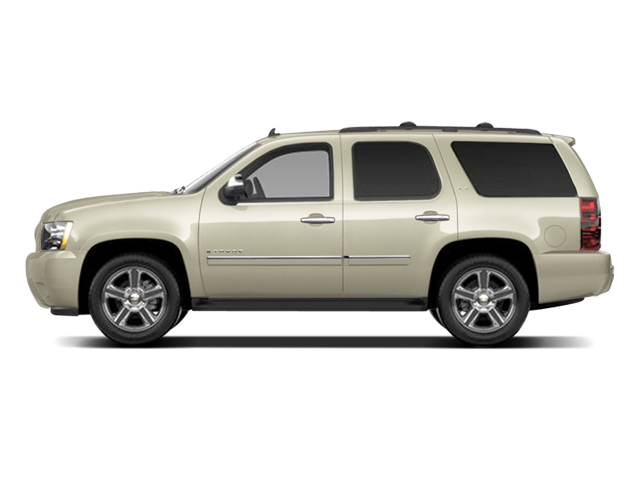

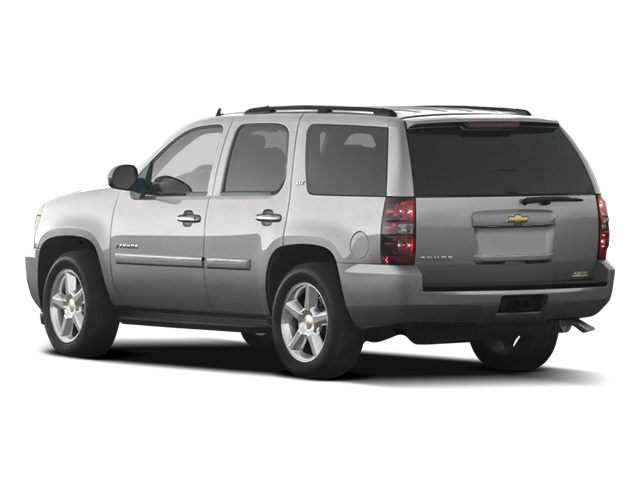

• Vehicle Name: Chevrolet Tahoe
• Body Style: 4 Door
• Body Code: E52
• Emissions
• EPA Greenhouse Gas Score: 3
