• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger (Not available with (VYU) Snow Plow Prep Package.)
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Audio system feature, speaker system (Requires Extended or Crew Cab Models. Includes 6 speakers)
• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• Coat hooks, rear driver and passenger side
• Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Door locks, power
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Remote vehicle starter prep package, includes Remote Keyless Entry (To enable remote start capability, new key fobs and vehicle reprogramming are required. Please see dealer for details. Remote Keyless Entry does not lock/unlock tailgate when (PDF) EZ-Lift Tailgate Package is ordered.)
• Seat adjuster, driver 6-way power
• Seat adjuster, front passenger 6-way power
• Seat adjuster, manual lumbar control on the driver-side
• Seat trim, Premium Cloth
• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)
• Seats, front bucket includes 6-way power driver and front passenger seat adjusters, front passenger manual recline, front passenger manual lumbar, adjustable outboard head restraints and storage pockets
• Steering wheel controls, mounted audio controls
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Tire Pressure Monitoring System (does not apply to spare tire)
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver Express-Down (Includes front passenger Express-down when (DL3) is ordered.)
• XM Satellite Radio (subscription required)

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, hydroformed
• GVWR, 9200 lbs. (4173 kg)
• Pickup box, fleetside
• Rear axle, 3.73 ratio
• Rear wheel drive
• Recovery hooks, front, frame-mounted
• Steering, power, recirculating ball
• Suspension Package, Handling/Trailering, heavy-duty includes 35mm twin tube shock absorbers and 36mm front stabilizer bar
• Suspension, front independent, torsion bar
• Suspension, rear 2-stage multi-leaf springs, semi-elliptic

• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owners Manual and child safety seat instructions for more safety information)
• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime Running Lamps, with automatic exterior lamp control
• OnStar Equipped (subscription required)

LT PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT BUCKET

• includes 6-way power driver and front passenger seat adjusters
• front passenger manual recline
• front passenger manual lumbar
• adjustable outboard head restraints and storage pockets (STD)

TIRES, LT265/70R17E ALL-TERRAIN, BLACKWALL

• Includes 4 tires and (ZER) LT265/75R16 on-/off-road blackwall spare tire with (E63) Fleetside pickup box. Includes 4 tires with (ZW9) pickup box delete.)

ENGINE, DURAMAX 6.6L TURBO DIESEL V8

• B5-Diesel compatible (365 hp [271.7 kW] @ 3200 rpm
• 660 lb-ft of torque [894.6 N-m] @ 1600 rpm) Includes (TUV) heavy-duty dual
• 730 cold-cranking-amp battery and (K05) engine block heater)

WHEELS, 4-17" X 7.5" (43.2 CM X 19.1 CM) 8-LUG BRIGHT MACHINED ALUMINUM

• includes (N79) 16" (40.6 cm) steel spare wheel

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock (STD)

TRAILERING EQUIPMENT, HEAVY-DUTY

• includes trailering hitch platform and 2.5-inch receiver with 2" adapter
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• wiring harness for after-market trailer brake controller (located in the instrument panel harness)
• and single wire for center high-mounted stop lamp

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION, BLACK

• integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

SUSPENSION PACKAGE, OFF-ROAD

• includes 35mm deflective disk twin tube shock absorbers
• off-road jounce bumpers
• 36mm front stabilizer bar
• (G80) heavy-duty automatic locking rear differential
• (NZZ) skid plate package and Z71 decals on rear quarters

BATTERY, HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS, MAINTENANCE-FREE

• with rundown protection and retained accessory power

• LT PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT BUCKET includes 6-way power driver and front passenger seat adjusters front passenger manual recline front passenger manual lumbar adjustable outboard head restraints and storage pockets (STD)
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL Includes 4 tires and (ZER) LT265/75R16 on-/off-road blackwall spare tire with (E63) Fleetside pickup box. Includes 4 tires with (ZW9) pickup box delete.)
• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B5-Diesel compatible (365 hp [271.7 kW] @ 3200 rpm 660 lb-ft of torque [894.6 N-m] @ 1600 rpm) Includes (TUV) heavy-duty dual 730 cold-cranking-amp battery and (K05) engine block heater)
• ENGINE BLOCK HEATER
• WHEELS 4-17" X 7.5" (43.2 CM X 19.1 CM) 8-LUG BRIGHT MACHINED ALUMINUM includes (N79) 16" (40.6 cm) steel spare wheel
• REAR AXLE 3.73 RATIO
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• BLUE GRANITE METALLIC
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock (STD)
• LICENSE PLATE BRACKET FRONT
• BRAKE CONTROLLER INTEGRATED TRAILER
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 2.5-inch receiver with 2" adapter 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and single wire for center high-mounted stop lamp
• EBONY PREMIUM CLOTH SEAT TRIM
• WINDOW POWER REAR SLIDING
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION BLACK integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• SUSPENSION PACKAGE OFF-ROAD includes 35mm deflective disk twin tube shock absorbers off-road jounce bumpers 36mm front stabilizer bar (G80) heavy-duty automatic locking rear differential (NZZ) skid plate package and Z71 decals on rear quarters
• BATTERY HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS MAINTENANCE-FREE with rundown protection and retained accessory power
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• LUGGAGE RACK SIDE RAILS ROOF-MOUNTED BLACK
• Rear Wheel Drive
• Tow Hooks
• Power Steering
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Fog Lamps
• Privacy Glass
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Passenger Adjustable Lumbar
• Climate Control
• Multi-Zone A/C
• A/C
• Driver Adjustable Lumbar
• Power Driver Seat
• Cruise Control
• Power Door Locks
• Floor Mats
• Rear Defrost
• Power Passenger Seat
• Rear Bench Seat
• Cloth Seats
• Power Outlet
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Tire Pressure Monitor
• Power Windows
• Keyless Entry
• Power Door Locks
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• ABS
• 4-Wheel Disc Brakes
• Daytime Running Lights
• Automatic Headlights
• Adjustable Steering Wheel
• Telematics
• Requires Subscription
• Driver Air Bag
• Passenger Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4500
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3185
• Curb Weight - Rear (lbs): 2433
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 22000
• Gross Combined Wt Rating (lbs): 18500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15200
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.8
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.79
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: ZIZ
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2760
• Front Tire Capacity (lbs): 2480
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3043
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 239.9
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 77.1
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): 150.9
• Cab to Axle (in): 41.5
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.5
• Ground Clearance, Rear (in): 11.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.9
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.6
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 65.5
• Summary

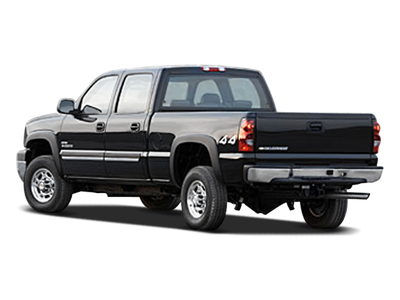

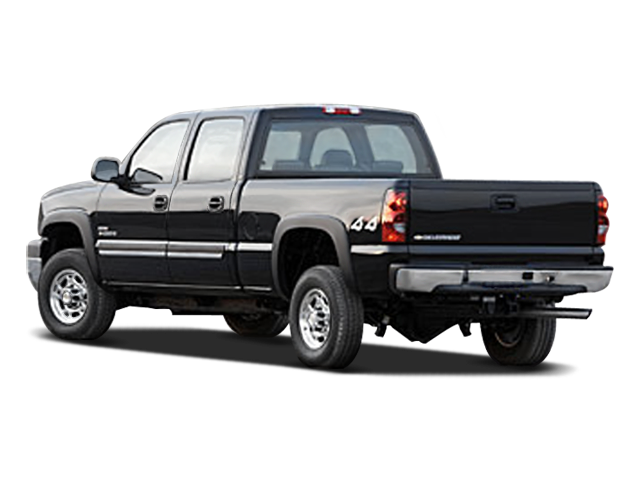

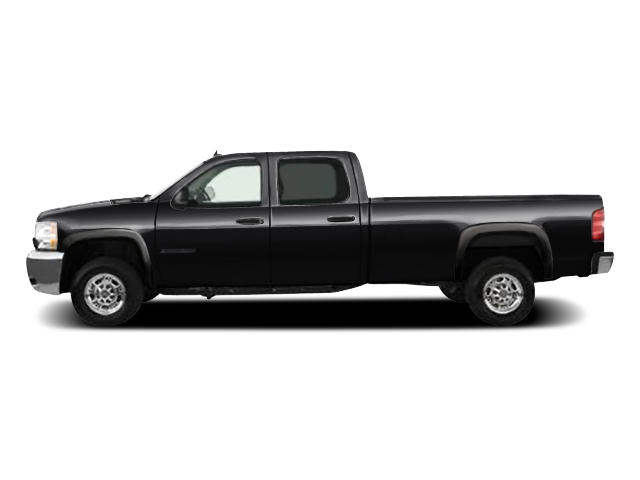

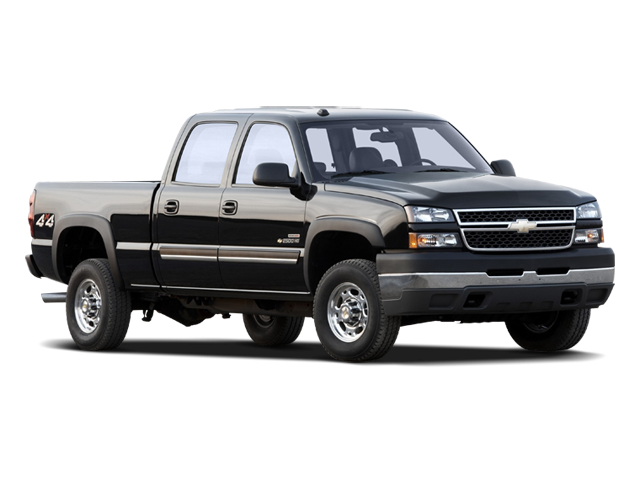

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab 6.5' Fleetside
• Body Code: E63
