• Air conditioning delete provides heater only (Requires Regular Cab models)
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab Models.)
• Audio system feature, 4-speaker system (Requires Regular Cab models.)
• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• Coat hooks, rear driver and passenger side
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Floor covering, Black rubberized-vinyl
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Steering wheel, includes theft-deterrent locking feature
• Visors, driver and front passenger, sliding, with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• XM Satellite Radio (subscription required)

• Alternator, 145 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, hydroformed
• GVWR, 6400 lbs. (2903 kg) (Standard on C*10703, C*10903, CC10553, and CC10753 models.)
• Pickup box, Fleetside
• Rear wheel drive
• Steering, power, rack-and-pinion
• Suspension, front independent, coil over shock
• Suspension, rear 2-stage multi-leaf springs, semi-elliptic

• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Brakes, 4-wheel antilock, front disc/rear drum
• Daytime Running Lamps, with automatic exterior lamp control
• OnStar Equipped (subscription required)
• Tire Pressure Monitoring System (does not apply to spare tire)

ENGINE, VORTEC 4.3L V6 MFI

• (195 hp [145.4 kW] @ 4600 rpm
• 260 lb-ft of torque [351.0 N-m] @ 2800 rpm) (STD)

SUSPENSION PACKAGE, SOLID SMOOTH RIDE

• includes 35 mm piston twin tube shocks and 32mm front stabilizer bar (STD)

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

REMOTE KEYLESS ENTRY

• with 2 transmitters
• panic button and content theft alarm
• Optional on all models when SEO (5B5) power windows
• locks and mirrors is ordered

PAINT, SOLID

• (STD)

WHEELS, 4 - 17" X 7.5" (43.2 CM X 19.1 CM) 6-LUG CHROME-STYLED STEEL

• includes chrome center caps (spare wheel will not cosmetically match the other 4 wheels)

CRUISE CONTROL, ELECTRONIC

• with set and resume speed
• located on steering wheel

LS PACKAGE

• includes (PY9) 4-17" x 7.5" (43.2 cm x 19.1 cm) 6-lug chrome-styled steel wheels
• (VG3) front chrome bumper and (V22) chrome surround grille

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

TIRES, P245/70R17 ALL-SEASON, BLACKWALL

• (STD)

GLASS, SOLAR-RAY DEEP-TINTED

• (all windows except light-tinted glass on windshield and driver and front passenger-side glass) (With Regular Cab models
• includes rear window. With Extended Cab models
• includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger
• includes light-tinted rear window.)

FLOOR COVERING, COLOR-KEYED CARPETING WITH RUBBERIZED VINYL FLOOR MATS

• (Extended and Crew Cab models also include rear floor mats)

• ENGINE VORTEC 4.3L V6 MFI (195 hp [145.4 kW] @ 4600 rpm 260 lb-ft of torque [351.0 N-m] @ 2800 rpm) (STD)
• SUSPENSION PACKAGE SOLID SMOOTH RIDE includes 35 mm piston twin tube shocks and 32mm front stabilizer bar (STD)
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• DOOR LOCKS POWER
• BLACK
• DARK TITANIUM CLOTH SEAT TRIM
• REMOTE KEYLESS ENTRY with 2 transmitters panic button and content theft alarm Optional on all models when SEO (5B5) power windows locks and mirrors is ordered
• PAINT SOLID (STD)
• WHEELS 4 - 17" X 7.5" (43.2 CM X 19.1 CM) 6-LUG CHROME-STYLED STEEL includes chrome center caps (spare wheel will not cosmetically match the other 4 wheels)
• CRUISE CONTROL ELECTRONIC with set and resume speed located on steering wheel
• LS PACKAGE includes (PY9) 4-17" x 7.5" (43.2 cm x 19.1 cm) 6-lug chrome-styled steel wheels (VG3) front chrome bumper and (V22) chrome surround grille
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• TIRES P245/70R17 ALL-SEASON BLACKWALL (STD)
• REAR AXLE 3.23 RATIO
• GLASS SOLAR-RAY DEEP-TINTED (all windows except light-tinted glass on windshield and driver and front passenger-side glass) (With Regular Cab models includes rear window. With Extended Cab models includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger includes light-tinted rear window.)
• FLOOR COVERING COLOR-KEYED CARPETING WITH RUBBERIZED VINYL FLOOR MATS (Extended and Crew Cab models also include rear floor mats)
• SEAT ADJUSTER MANUAL LUMBAR CONTROL ON THE DRIVER-SIDE
• REMOTE KEYLESS ENTRY with 2 transmitters panic button and content theft alarm
• AIR CONDITIONING SINGLE-ZONE MANUAL FRONT CLIMATE CONTROL
• Rear Wheel Drive
• Power Steering
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Split Bench Seat
• Adjustable Steering Wheel
• Steering Wheel Audio Controls
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• ABS
• Front Disc/Rear Drum Brakes
• Daytime Running Lights
• Automatic Headlights
• Telematics
• Requires Subscription

• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3200
• Gross Axle Wt Rating - Rear (lbs): 3750
• Curb Weight - Front (lbs): 2541
• Curb Weight - Rear (lbs): 1771
• Gross Vehicle Weight Rating Cap (lbs): 6400
• Gross Combined Wt Rating (lbs): 9500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4900
• Dead Weight Hitch - Max Tongue Wt. (lbs): 490
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 720
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Spring Capacity - Front (lbs): 3200
• Spring Capacity - Rear (lbs): 3750
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3200
• Axle Capacity - Rear (lbs): 3750
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.26
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): - TBD -
• Tires
• Front Tire Order Code: QPR
• Rear Tire Order Code: QPR
• Spare Tire Order Code: QPR
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2004
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Exterior Dimensions
• Wheelbase (in): 119.0
• Length, Overall w/o rear bumper (in): 205.6
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 73.6
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): 116.5
• Cab to Axle (in): 41.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.7
• Ground Clearance, Rear (in): 13.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.6
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 60.7
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Summary

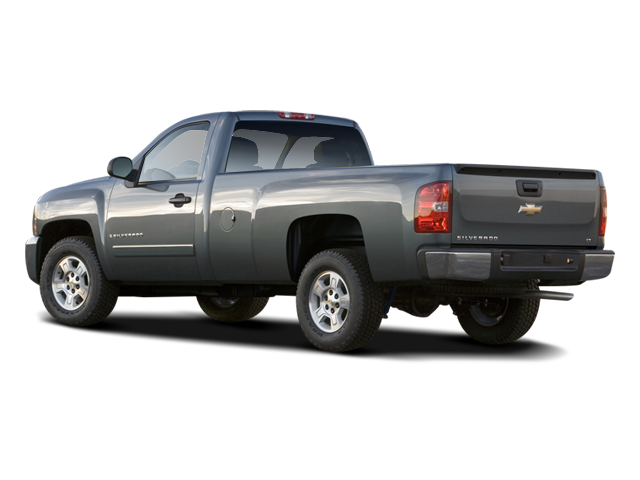

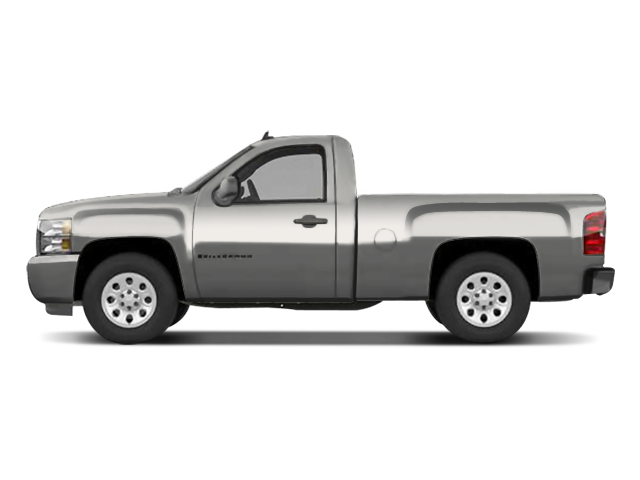

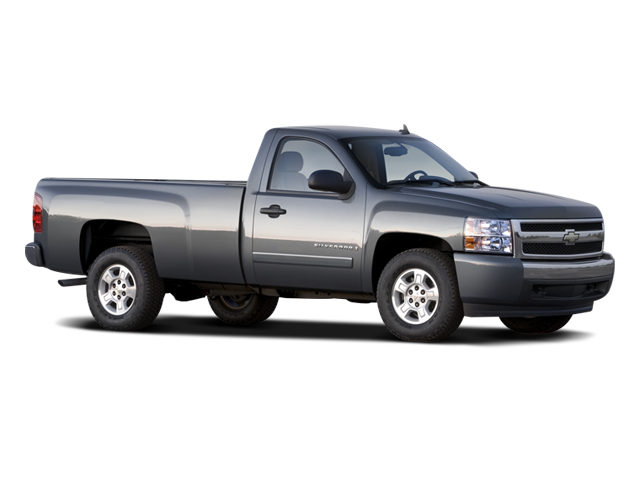

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Reg Cab 6.5' Wideside
• Body Code: E63
