• Air conditioning, single-zone manual front climate control
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab Models.)
• Audio system feature, speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab Models.)
• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• Coat hooks, rear driver and passenger side
• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Door locks, power
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats) (May be substituted with (BG9) Black rubberized vinyl floor covering.)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Remote Keyless Entry with 2 transmitters, panic button and content theft alarm
• Remote vehicle starter prep package, includes Remote Keyless Entry (To enable remote start capability, new key fobs and vehicle reprogramming are required. Please see dealer for details. Remote Keyless Entry does not lock/unlock tailgate when (PDF) EZ-Lift Tailgate Package is ordered.)
• Seat adjuster, manual lumbar control on the driver-side
• Seat trim, Select Cloth
• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor) (Requires Extended or Crew Cab Models.)
• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining center fold-down armrest with storage, lockable storage compartment in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets on Extended and Crew Cab models
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver Express-Down
• XM satellite radio (subscription required)

• Alternator, 145 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, hydroformed
• GVWR, 6800 lbs. (3084 kg) (Requires CC10753, CC10543, CK10903, and CK10553 models. Standard on CC10543 and CK10553 models.)
• Pickup box, Fleetside
• Rear wheel drive
• Recovery hooks, front, frame-mounted (Standard on 4WD Models.)
• Steering, power, rack-and-pinion
• Suspension, front independent, coil over shock
• Suspension, rear 2-stage multi-leaf springs, semi-elliptic

• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Brakes, 4-wheel antilock, front disc/rear drum
• Daytime Running Lamps, with automatic exterior lamp control
• OnStar Equipped (subscription required)
• StabiliTrak, stability control system with Proactive Roll Avoidance (Requires C*10753 or C*10543 models. Standard on C*10543 models. Required with (NHT) Max Trailering Pack.)
• Tire Pressure Monitoring System (does not apply to spare tire)

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL FRONT CLIMATE CONTROL

• (STD)

ALL STAR EDITION

• includes (LY5) Vortec 5.3L V8 SFI engine
• (LC9) Vortec 5.3L V8 SFI FlexFuel engine or (LMG) Vortec 5.3L V8 SFI FlexFuel engine
• (G80) heavy-duty automatic locking rear differential
• (Z82) heavy-duty trailering equipment
• (AG1) 6-way power driver seat adjuster and (P58) 4-20" x 8.5" (50.8 cm x 21.6 cm) 5-spoke machined aluminum wheels

PAINT, SOLID

• (STD)

TRAILERING EQUIPMENT, HEAVY-DUTY

• includes trailering hitch platform and 2-inch receiver
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• wiring harness for after-market trailer brake controller (located in the instrument panel harness)
• and single wire for center high-mounted stop lamp
• (K47) high-capacity air cleaner and (KNP) external transmission oil cooler

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• center fold-down armrest with storage
• lockable storage compartment in seat cushion (includes auxiliary power outlet)
• adjustable outboard head restraints and storage pockets on Extended and Crew Cab models (STD)

LT PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRES, P275/55R20 TOURING, BLACKWALL

• includes all-season 17" blackwall spare

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

GVWR, 6800 LBS. (3084 KG)

• (STD)

LICENSE PLATE BRACKET, FRONT

• (will be forced on orders with ship-to states that require a front license plate)

ENGINE, VORTEC 5.3L V8 SFI WITH ACTIVE FUEL MANAGEMENT

• (315 hp [234.9 kW] @ 5200 rpm
• 338 lb-ft of torque [456.3 N-m] @ 4400 rpm)
• iron block

SUSPENSION PACKAGE, HIGH-PERFORMANCE

• includes 36mm front stabilizer bar

WHEELS, 4 - 20" X 8.5" (50.8 CM X 21.6 CM) 5-SPOKE MACHINED ALUMINUM

• includes (QSS) P275/55R20 touring blackwall tires
• (Z60) High-performance suspension package and steel spare (spare wheel will not cosmetically match the other 4 wheels)

• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock (STD)
• AIR CONDITIONING SINGLE-ZONE MANUAL FRONT CLIMATE CONTROL (STD)
• SEAT ADJUSTER DRIVER 6-WAY POWER
• ALL STAR EDITION includes (LY5) Vortec 5.3L V8 SFI engine (LC9) Vortec 5.3L V8 SFI FlexFuel engine or (LMG) Vortec 5.3L V8 SFI FlexFuel engine (G80) heavy-duty automatic locking rear differential (Z82) heavy-duty trailering equipment (AG1) 6-way power driver seat adjuster and (P58) 4-20" x 8.5" (50.8 cm x 21.6 cm) 5-spoke machined aluminum wheels
• PAINT SOLID (STD)
• GRAYSTONE METALLIC
• EBONY SELECT CLOTH SEAT TRIM
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 2-inch receiver 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and single wire for center high-mounted stop lamp (K47) high-capacity air cleaner and (KNP) external transmission oil cooler
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING center fold-down armrest with storage lockable storage compartment in seat cushion (includes auxiliary power outlet) adjustable outboard head restraints and storage pockets on Extended and Crew Cab models (STD)
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• AIR CLEANER HIGH-CAPACITY
• LT PREFERRED EQUIPMENT GROUP includes standard equipment
• TIRES P275/55R20 TOURING BLACKWALL includes all-season 17" blackwall spare
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• COOLING AUXILIARY EXTERNAL TRANSMISSION OIL COOLER HEAVY-DUTY AIR-TO-OIL
• GVWR 6800 LBS. (3084 KG) (STD)
• LICENSE PLATE BRACKET FRONT (will be forced on orders with ship-to states that require a front license plate)
• ENGINE VORTEC 5.3L V8 SFI WITH ACTIVE FUEL MANAGEMENT (315 hp [234.9 kW] @ 5200 rpm 338 lb-ft of torque [456.3 N-m] @ 4400 rpm) iron block
• SUSPENSION PACKAGE HIGH-PERFORMANCE includes 36mm front stabilizer bar
• WHEELS 4 - 20" X 8.5" (50.8 CM X 21.6 CM) 5-SPOKE MACHINED ALUMINUM includes (QSS) P275/55R20 touring blackwall tires (Z60) High-performance suspension package and steel spare (spare wheel will not cosmetically match the other 4 wheels)
• REAR AXLE 3.42 RATIO
• Tow Hooks
• Rear Wheel Drive
• Power Steering
• Tires - Front All-Season
• Tires - Rear All-Season
• Privacy Glass
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Split Bench Seat
• Power Outlet
• A/C
• Driver Adjustable Lumbar
• Power Door Locks
• Security System
• Keyless Entry
• Power Door Locks
• Cruise Control
• Rear Defrost
• Floor Mats
• Cloth Seats
• Rear Bench Seat
• Adjustable Steering Wheel
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Keyless Entry
• Power Door Locks
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• ABS
• Front Disc/Rear Drum Brakes
• Daytime Running Lights
• Automatic Headlights
• Telematics
• Requires Subscription

• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 20
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 16.84
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3650
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): 2930
• Curb Weight - Rear (lbs): 2040
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Combined Wt Rating (lbs): 12000
• Gross Combined Wt Rating (lbs): 10000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4600
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 460
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 990
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 690
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Spring Capacity - Front (lbs): 3650
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3650
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.42
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): - TBD -
• Tires
• Front Tire Order Code: QSS
• Front Tire Order Code: QPR
• Rear Tire Order Code: QSS
• Rear Tire Order Code: QPR
• Spare Tire Order Code: QSS
• Spare Tire Order Code: QPR
• Front Tire Size: P275/55R20
• Front Tire Size: P245/70R17
• Rear Tire Size: P275/55R20
• Rear Tire Size: P245/70R17
• Spare Tire Size: P275/55R20
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2044
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2044
• Rear Tire Capacity (lbs): 2004
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Front Wheel Material: Steel
• Rear Wheel Material: Aluminum
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 229.9
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 73.8
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): 148.9
• Cab to Axle (in): 32.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 32.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 12.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.3
• Cargo Box Width @ Top, Rear (in): 61.6
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 53.2
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.6
• Second Leg Room (in): 38.7
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 65.5
• Summary

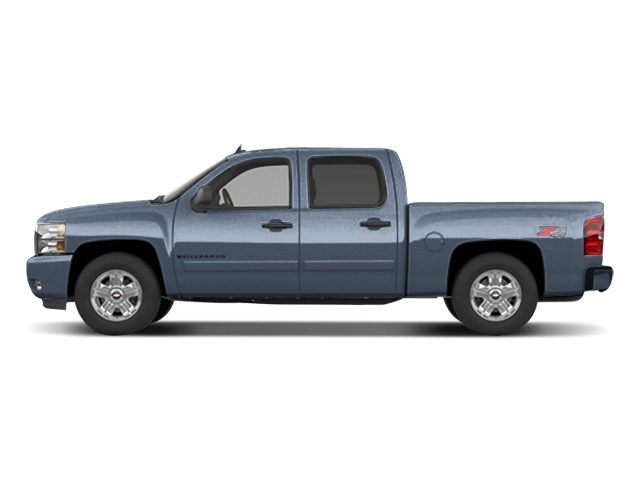

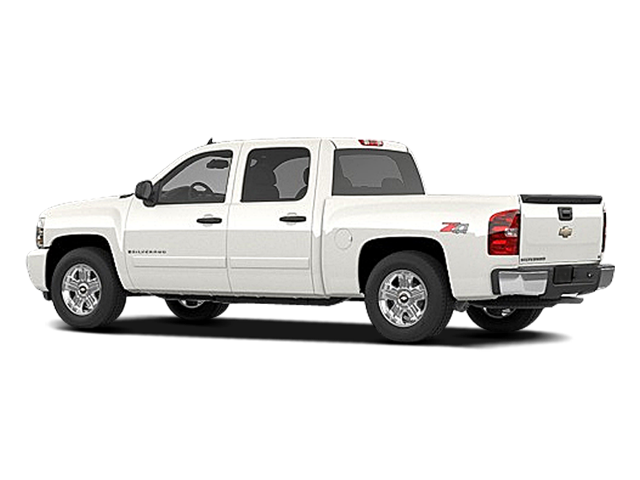

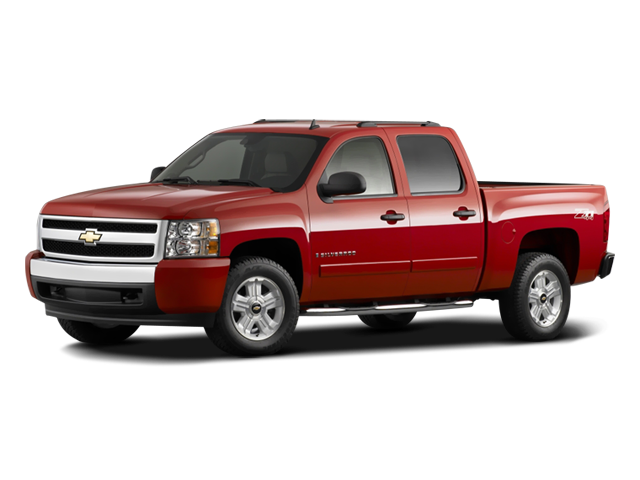

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab 5.8' Wideside
• Body Code: E63
